Packing List
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
| Brand | Geovision |

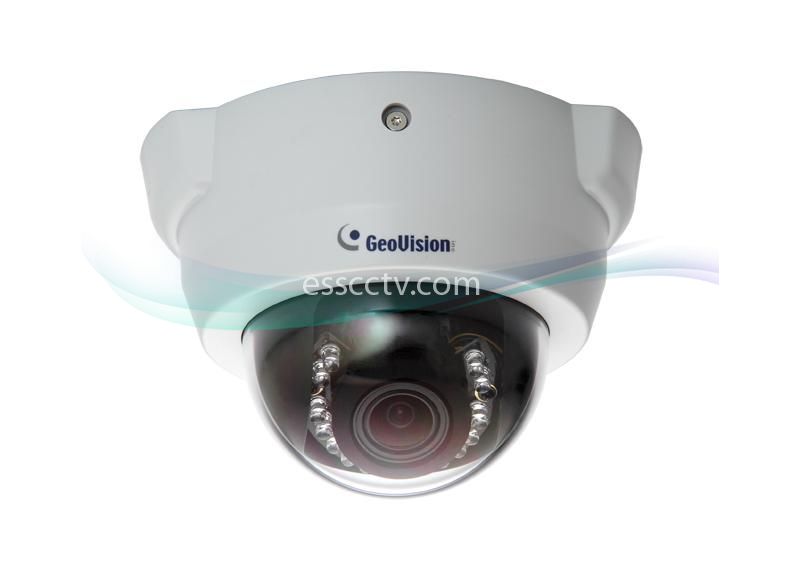

| Model | GV-FD5300 |
| Image Sensor | 1/2.5” progressive scan low lux CMOS |
| Megapixels | 5 MP |
| Minimum Illumination | 0.15 Lux at F/1.6 |
| Electronic Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec.) |
| Day & Night | Yes (with removable IR‐cutfilter) |
| IR LED | 10 units up to 100 ft |
| Focus | Manual (w/lock) |
| Lens | 4.5 ~ 10mm | F/1.6 |
| Zoom | Manual (w/lock) |
| Video Compression | H.264, MJPEG |
| Audio Compression | G.711 |
| Max. Image Resolution | 2560 (H) x 1920 (V) |
| WDR | Yes |
| Frame Rate | 10 fps at 2560 x 1920 |
| Storage | Micro SDmemory card slot(SDHC / SDXC for Class 6 card or above) |
| Networking Protocols | HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS (DSCP),ONVIF (Profile S) |
| 3-Axis Adjustment | Yes |
| Audio | Supports two-way audio |
| Communication Interface | 1 RJ45 10M / 100M ethernet interface |
| TV-out | BNC connector(640 x 480 resolution) for spot monitor |
| Power Supply | 12V DC / 24V AC / PoE |
| Power Consumption | 12 W |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F ) |
| Humidity | 10% to 90% (no condensation) |
