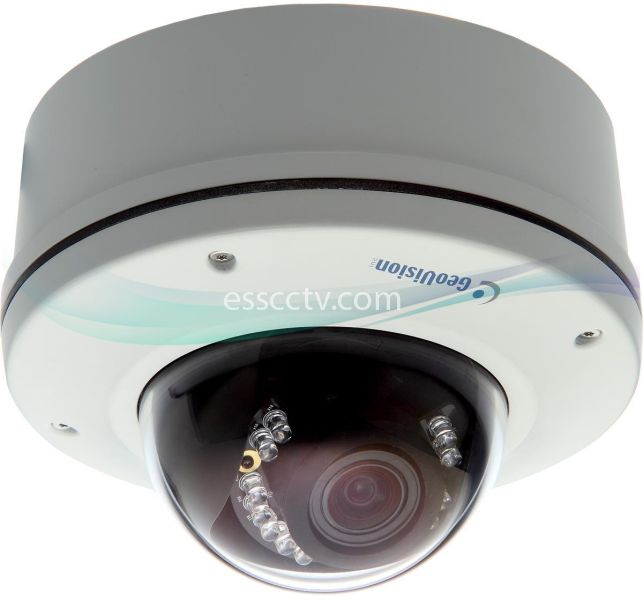

Geovision GV-VD3400 IP Network Outdoor Vandal-Proof Dome IR Camera, HD 3 Megapixel, WDR Pro
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
GV-VD3400
Item #: 987
Manufacturer: GeoVision
MSRP:
$850.00
Our Price:
$515.00
(You save: $335.00)
- 1/3.2" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 20 fps at 2048 x 1536
- Vandal resistance (IK10+)
- Ingress protection (IP67)
- Varifocal megapixel lens
- 3-axis mechanism (pan / tilt / roll)
- Day and night function (with removable IR-cut filter)
- External microphone
- Intelligent IR
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- DC12V / AC24V / PoE
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Packing List
- Vandal Proof IP Dome
- Silica Gel Bag x 2
- Screw Anchor x 4
- Torx Wrench
- Ceiling Screw x 4
- Blue Screw x 3
- T-Cap Screw x 3
- Small Screw Cap x 3
- T-Cap x 3
- Plastic Clip x 3
- Focus Adjustment Cap
- 2-Pin Terminal Block
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software CD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
| Brand |
Geovision |
| Model |
GV-VD-3400 |
| Image Sensor |
1/3.2” progressive scan CMOS |
| Megapixels |
3 MP |
| Minimum Illumination |
Color 0.08 Lux, B/W 0.05 Lux, IR ON 0 Lux |
| Electronic Shutter Speed |
Automatic , Manual (1/5 – 1/8000 sec.) |
| Day & Night |
Yes (with removable IR-cut filter) |
| IR LED |
10 IR LEDs up to 100 feet |
| Focus |
Manual (w/lock) |
| Lens |
3~9 mm / f1.2 |
| Zoom |
Manual (w/lock) |
| Video Compression |
H.264 / MJPEG |
| Audio Compression |
G.711 |
| Max. Image Resolution |
2048 (H) x 1536 (V) |
| WDR Pro |
Yes |
| Frame Rate |
20 fps at 2048 x 1536 |
| Storage |
Micro SD/SDHC memory card slot |
| Networking Protocols |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
| Audio |
1 in 1 out |
| Communication Interface |
10/100 Ethernet |
| TV-out |
BNC connector(640 x 480 resolution) for spot monitor |
| Power Supply |
12V DC / 24V AC / PoE |
| Power Consumption |
12 W |
| Operating Temperature |
-30°C ~ 50°C (-22°F ~ 122°F) |
| Humidity |
10% to 90% (no condensation) |
| IP Rating |
IP67 |
| Vandal Resistance |
IK10+ |
| Dimensions |
6.49 x 4.92 in |
| Weight |
3.75 lb |
| Warranty |
2 Year Warranty |
