> Item #982

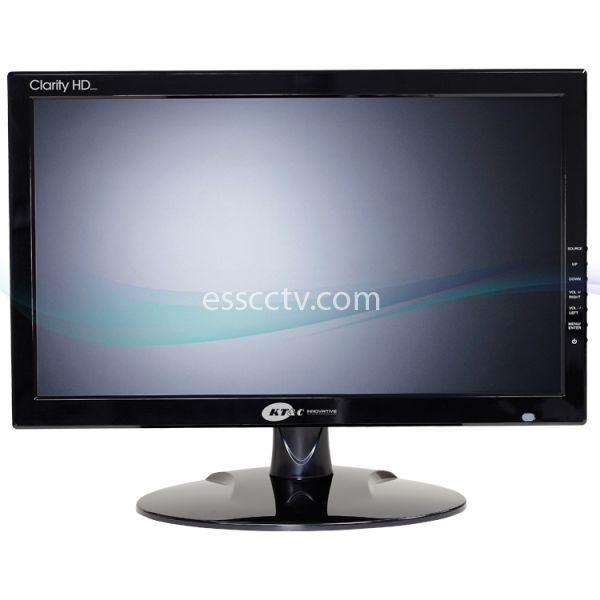

* SOLD OUT * KT&C KPM-7522HDMIA 1080p Security LED Monitor with BNC input and Loop-out, HDMI, 21.5 inch

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C KPM-7522HDMIA 1080p Security LED Monitor with BNC input and Loop-out, HDMI, 21.5 inch: KPM-7522HDMIA

Additional Image for KT&C KPM-7522HDMIA 1080p Security LED Monitor with BNC input and Loop-out, HDMI, 21.5 inch: Control

Additional Image for KT&C KPM-7522HDMIA 1080p Security LED Monitor with BNC input and Loop-out, HDMI, 21.5 inch: Dimension

Model: KPM-7522HDMIA
Item #: 982
Manufacturer: KT&C USA

MSRP: $300.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

This Model has been discontinued.
Please contact us to order the item (or the replacing model)

Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA, S-Video and BNC analog inputs (with looping BNC analog output)

Superlative image quality from 1 billion color 30 bit Deep Color capability and advanced scaler technology

Full HD 1920 x 1080 1080p resolution

Fully tested, approved and licensed by the HDMI Forum to bear the official HDMI logo.

OSD menu selection of 16:9 widescreen or 4:3 ‘SD’ aspect ratio to correctly display images from analog DVRs or megapixel HD-SDI/NVR recorders

Customizable video settings in flexible On Screen Display (OSD) Menu

Auto-on when VGA or HDMI DVR/NVR video is detected

Bright LED illuminated panel with ultra wide (170° H) viewing angle

LED panel conserves energy and extends service life

Built in stereo speakers and audio amplifier

HDMI audio support & 3.5 mm analog audio inputs automatically track video source selection

HDMI audio pass-through to analog output jack

Included desk stand is easily removable for 100mm VESA mounting

HDMI, VGA and audio accessory cables included

Two year warranty

Model	KPM-7519HDMIA	KPM-7522HDMIA	KPM-7524HDMIA
Screen diagonal dimension	18.5 inch	21.5 inch	24 inch
Viewable area W x H	16.63 x 9.57 inch	18.81 x 10.60 inch	20.92 x 11.77 inch
Led Type	RGB
Pixel Pitch	0.28 mm	0.248 mm	0.277 mm
Screen Maximum Resolution	1360 x 768	1920 x 1080
Supported Panel Display Resolutions	720x400; 640x480; 800x600; 1024x768; 1280x1024; 1360x768	720x400; 640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1440x900; 1600x900; 1680x1050; 1920x1080
Supported Input Resolutions	720x400; 640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1920x1080 (scaled)	720x400; 640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1440x900; 1600x900; 1680x1050; 1920x1080
Refresh Rate (Vertical Frequency)	60, 70, 72.2, 72.8, 75 Hz depending on resolution
Color Space/Gamut	Deep Color
Color Depth	30 bits; 1 billion (1,073,741,824) colors
Brightness	250 CD/m²
Auto Adjust	Yes
Monitor Aspect Ratio	16 : 9
Display Aspect Ratio	OSD selectable 16:9 or 4:3
Horizontal TV Lines	720	1080
Contrast Ratio	2000 : 1
Response Time	5 ms
View Angle H/V (degrees)	170/160
Digital Video Inputs	HDMI up to 1920 x 1080
Analog Video In/Out HD	VGA in up to 1920 x 1080
Analog Video In/Out SD	S-Video in; BNC CVBS In + Looping Output
Audio inputs (stereo)	1x 3.5 mm mini-jack
Audio output/headphone jack (stereo)	1x 3.5 mm mini-jack; output active for inputs from both analog and HDMI digital audio
Speakers	Two – built in 2.7” x 1.2” oval type
Audio Amplifier	1 Watt/Channel
Filter type	3D Comb Filter
De-Interlace & Noise Reduction	3D De-Interlace
OSD Languages	English, Spanish, German, Chinese, French, Italian
Monitor Body Dimensions (W x Lx D)	17.80 x 11.04 x 2.00 inch	20.34 x 12.47 x 2.02 inch	22.72 x 13.69 x 2.01 inch
Max Dimensions Monitor + Stand	17.8 x 13.42 x 7.28 inch	20.34 x 14.81 x 7.28 inch	22.72 x 16.03 x 7.28 inch
Panel Surface	Matte finish
Case & Stand Material	Plastic
VESA Mounting Pattern	100x100; location centered on monitor body
Base/Stand included	Yes
Base Tilt Angle	+15° ~ -10°
Weight Cabinet only	4.63 lb. (2.1 kg)	5.73 lb. (2.6 kg)	8.6 lb.(3.9 kg)
Weight Cabinet + Base Stand	5.51 lb. (2.5 kg)	8.75 lb. (3.97 kg)	9.63 lb. (4.37 kg)
Power-Watts (on and standby)	< 20W	< 30W	< 35W
Power Input	100 ~ 240V AC (detachable USA line cord provided)
Operating Temperature	32⁰ ~ 104⁰ F (0⁰ ~ 40⁰ C)
Storage Temperature	-4⁰ ~ 140⁰ F (-20⁰ ~ 60⁰ C)
Operating Humidity	10 ~ 85%
Accessories	Power cord, 3.5mm stereo audio cable, VGA cable, HDMI cable, User Guide
Certifications	CE, FCC, HDMI Forum
Warranty	2 years
