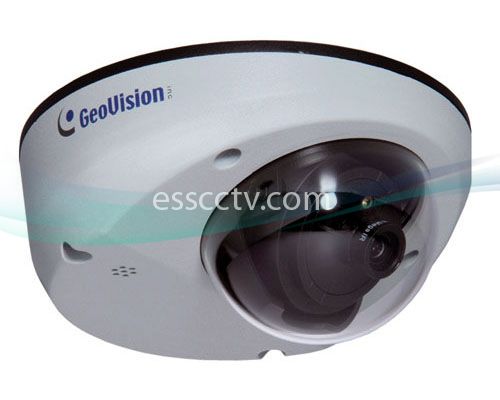

GEOVISION GV-MDR520 IP Network Mini Rugged Outdoor Dome Camera 5 Megapixel, Low Lux, PoE
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
GV-MDR520
Item #: 977
Manufacturer: GeoVision
MSRP:
$790.00
Our Price:
$535.00
(You save: $255.00)
- 1/2.5" progressive scan CMOS
- 2.54mm Megapixel lens
- Dual streams from H.264 and MJPEG
- Up to 10 fps at 2560 x 1920
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- EN50155 compliance for rolling stock applications
- 3-axis mechanism: pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
- Built-in microphone
- Built-in micro SD card slot (SD/SDHC) for local storage
- Wide Dynamic Range (WDR)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Endurable to low environment temperatures
(-30°C ~ 50°C / -22°F ~ 122°F)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF conformant
Packing List
- Mini Fixed Rugged Dome
- Torx Wrench
- Self Tapping Screw x 2
- Screw Anchor x 2
- Cable stopper
- Cable Connector
- Installation sticker
- Silica gel bag x 2
- Ferrite core for vehicle installation
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software CD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
|
| |
| Note: Specifications are subject to change without notice. |
| Brand |
Geovision |
| Model |
GV-MDR520 |
| Image Sensor |
1/2.5" progressive scan CMOS |
| Megapixels |
5 MP |
| Resolution |
2560 (H) x 1920 (V) |
| Minimum Illumination |
0.15 Lux (Color), 0.10 Lux (B/W) |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| Day & Night |
Electronic |
| IR LED |
Non-IR |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| Lens |
2.54 mm |
| Video Compression |
H.264 / MJPEG |
| Audio |
Built-in microphone |
| Network |
10/100 Ethernet |
| WDR Pro |
No |
| Network Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
PSIA, SNMP, QoS (DSCP)HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP
DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Local Storage |
Micro SD/SDHC memory card slot (for Class 6 card or above) |
| Operating Temperature |
-20 °C ~ 50 °C / -4 °F ~ 122 °F |
| Audio |
G.711 |
| POE |
IEEE 802.3af Power over Ethernet / PSE |
| Power Source |
POE |
| Power Consumption |
4.2 W |
| Dimension |
4.5 x 2.3 in |
| Weight |
1.3 lb |
| IP Rating |
IP67 |
| Vandal Resistance |
IK10 |
| Warranty |
2 Year Warranty |
