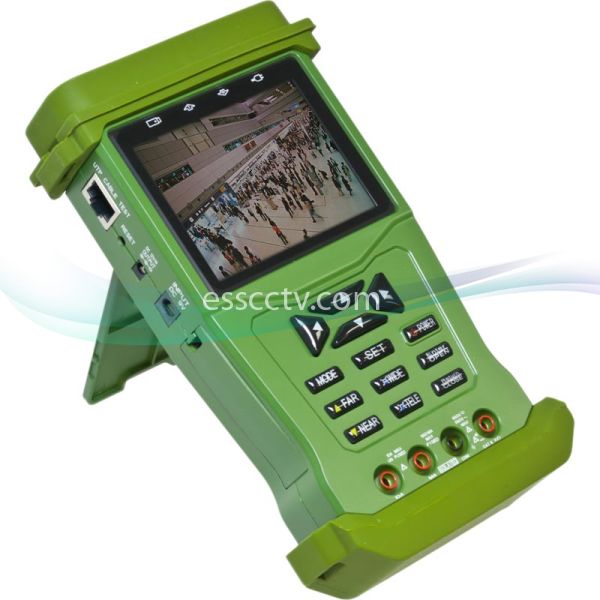

Multi-Function 3.5 inch LCD - CCTV camera, UTP cable, PTZ tester, 1000mA power out
.jpg)
Images are for illustration purpose and may not show the actual product.
Additional Images:
.jpg "CT-695")
.jpg "Front")
.jpg "Side")
.jpg "Top")
Model:
CT-695
Item #: 94
MSRP:
$327.00
Our Price:
$215.00
(You save: $112.00)
- DC 9V / 2A power adapter included
- 1600mA eechargeable battery included
- Digital multi-meter specs:
- AC/DC Voltage : 0~300V
- AC/DC Current : 400.0µA • 4000µA • 40.00mA • 400.0mA • 10A
- Resistance : 400.0Ω • 4.000K • 40.00K • 400.0K • 4.000M • 40.00M
- Capacitance : 4.00nF~400µF
- Continuity : < 50Ω sound reminder
| Video signal test |
| Signal mode |
NTSC/PAL automaticcally select |
| Display |
3.5" inch LTPS LCD screen, 960 × 240 resolution |
| Video Input |
1 channel BNC |
| Video output |
1 channel BNC |
| PTZ test |
| Communication |
RS485 |
| PTZ protocol |
PELCO P/D and kinds of protocols, special protocol could be customized |
| Other functions |
| Power output |
Supply 12V power to camera |
| Audio Test |
1 channel audio signal output |
| Audio Test |
1 channel audio signal output |
| UTP Cable Test |
Test UTP Cable connection state and display on the screen. |
| RS-485 Data Test |
Test the RS485 data sent from control device. |
| Power |
| Power Adapter |
DC 9V / 2A |
| Battery |
1600mAH |
| Digital Multi-meter |
| AC / DC Voltage |
0~300V |
| AC / DC Current |
400.0µA • 4000µA • 40.00mA • 400.0mA • 10A |
| Resistance |
400.0Ω • 4.000K • 40.00K • 400.0K • 4.000M • 40.00M |
| Capacitance |
4.00nF~400µF |
| Continuity |
< 50Ω sound reminder |
| Test Speed |
3 seconds at a time |
| Other Parameters |
| Work Temperature |
-30°C ~ +70°C |
| Work Humidity |
30% ~ 90% |
| Dimension |
105 × 44 × 188mm / 4.1 × 1.7 × 7.4in |
