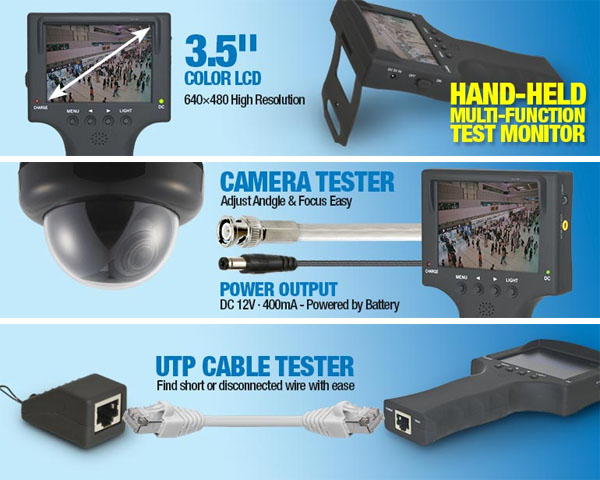

| Display | 3.5" TFT Color LCD |
| Image Resolution | 640X480 |
| Video In | Video In × 1 (BNC connector) |
| Power out | DC power out × 1 (Support CCD camera of power source/ Max electric currency 400mA) |
| System Format | NTSC / PAL |
| Light instructions | 2 LED (Power IND = Green / Charging IND =Red) |
| Battery Specifications | Built-in rechargeable Lithium battery : 3.7V 2000mA/h |
| Power Specifications | External power :DC 5V 1.0A Adapter |
| Dimension/ Weight | 180mm (L) × 98mm (W) × 30mm(H) / 250g 7.1(L) × 3.9(W) × 1.2(H) / 8.8oz |
