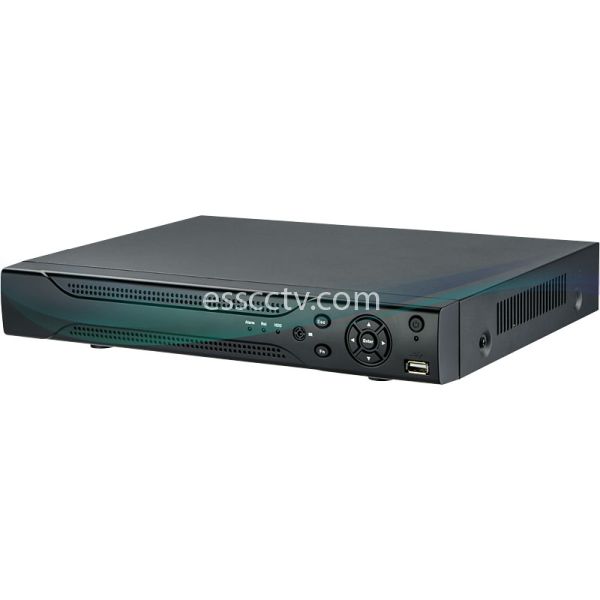

HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App
HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App
Images are for illustration purpose and may not show the actual product.
Additional Images:
Additional Image for HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App: CVST CHR-08 Additional Image for HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App: Front Panel Additional Image for HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App: Back Panel Additional Image for HD-CVI 8 channel DVR system, HD 720p real-time record, HDMI output, Mobile Phone App: Accessories
Model: CVST CHR-08
Item #: 908
MSRP: $300.00
Our Price:
$189.00
(You save: $111.00)
qty:
Available Options:
HDD:

This Model has been discontinued.
Please follow the link for our recommended replacement: CVST-CHR-16



New HD-Over-Coax Solution Provides Long-Distance Transmission

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost? HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

What is HDCVI?

HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The HDCVI solution incorporates both cameras and DVRs. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).

Long-distance Transmission

Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Connectors and welding process also affect the transmission distance.

3 Signals in 1 Coaxial Cable

HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation. For instance, HDCVI PTZ cameras would require only one coaxial cable where traditional analog PTZ cameras would require three separate cables for video, audio, and data control.

Easy to Upgrade

The HDCVI systems and cameras work on standard coaxial cables unlike HD-SDI systems where RG59 grade or higher is mandatory. Therefore, upgrading from older analog systems to HD picture quality is as easy as replacing the system and cameras. The HDCVI systems are also cost-efficient. The cost of the standard HDCVI cameras and systems are equivalent to that of the current analog systems.

HDCVI Provides Long-distance HD transmission

The HDCVI solution can not only render smooth HD transmission during long-distance transmissions, but is also free from IP hassles and allows for simple installation; it also features a no-latency capability for real-time performance. With no need for compression processing to maintain its original video quality, it is able to present good quality vivid images. In comparison with other analog systems, HDCVI has an advantage on the transmission distance front, as it can transmit upto 500m. In a word, HDCVI not only provides a good solution that offers megapixel image quality over long-distance transmission, but also ease of installation.





* CVI systems only work with CVI compatible cameras

The CHR series are excellent digital monitor product designed for security field and adopt embedded Linux OS to maintain reliable operation. CHR series are easy to use with simple setup and have various functions such as record, playback, monitor at the same time and can guarantee audio video synchronization. CHR series built with advanced technology and strong network data transmission function.

The CHR series adopt embedded design for maximum security and reliability, they can be widely used in various areas such as banking, telecommunication, electric power, interrogation, transportation, intelligent resident zone, factory, warehouse, resources, and water conservancy.

  • Mobile Phone App AvailableiPhone, iPad : iDMSS HD Lite / Android : GDMSS Lite
  • Use all video output Simultaneously : It has VGA and HDMI output. You can use monitor to display surveillance function. System supports VGA/HDMI output simultaneously.
  • Secure video format : Specialized data format to guarantee data security and can avoid unwanted data modification.
  • Compression format : Support multiple-channel audio and video. An independent hardware decodes audio and video signal from each channel to maintain their synchronization.
  • Backup function : Support backup operation via USB port (such as flash disk, portable HDD, DVD burner). Client-end user can also perform backup via network.
  • Record playback function : Support each channel real-time record independently, and at the same time it can support search, playback, network monitor, record search, download and etc.
    Support various playback modes: slow play, fast play, backward play and frame by frame play. Support timestamp overlay so that you can view event accurate occurred time.
    Support specified zone enlargement.
  • Network operation : Support network remote real-time monitor, remote record search and remote PTZ control.
  • PTZ control : Support PTZ decoder via RS485. Support various decode protocols to allow the PTZ to control the speed dome.
  • UPnP : It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol.
