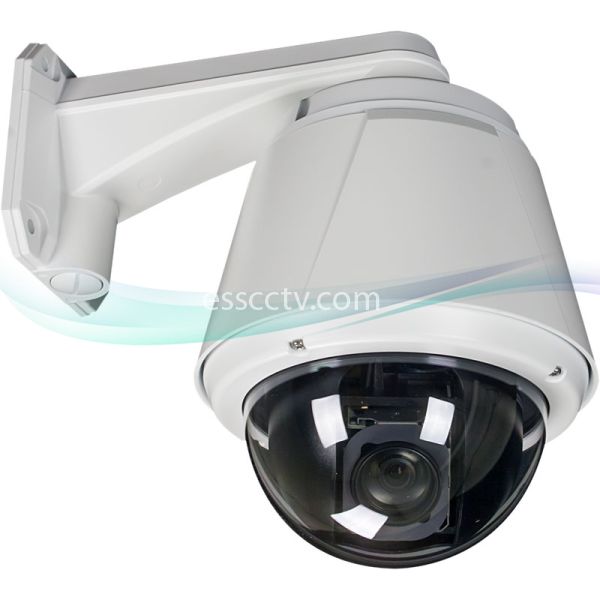

XPT-1330 HD-SDI outdoor PTZ camera: 3 Megapixel, 30x Optical Zoom, WDR, ICR True Day/Night

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for XPT-1330 HD-SDI outdoor PTZ camera: 3 Megapixel, 30x Optical Zoom, WDR, ICR True Day/Night: XPT-1330

Additional Image for XPT-1330 HD-SDI outdoor PTZ camera: 3 Megapixel, 30x Optical Zoom, WDR, ICR True Day/Night:

Model: XPT-1330
Item #: 660

MSRP: ~~$1,800.00~~
Our Price:

$1,230.60

(You save: $569.40)

3.0 Mega-Pixel Resolution PTZ

x360 Zoom Control (Optical x30 / Digital x12)

True Day & Night with ICR (IR Cut Filter)

WDR (Wide Dynamic Range) / NR (Noise Reduction) / Image Stabilization Function

Minimum Illuminance (0.8 Lux @ Color / 0.1 Lux @ B/W)

Super Speed (500°/SEC.) with 360° Endless Pan Rotation

The Shortest Path with Vector Drive Technology

Micro Control (0.05°/SEC.) with Micro Stepping Control Technology

Super Video Quality with RAW Video Data

HD-SDI Standard Support (HDcctvTM V1.0 / 1.485Gb/s / SMPTE 292M)

Simultaneous HD-SDI & Composite Output

OSD(On-Screen Display) Menu with Password Function

8 Privacy Masks with Spherical Coordinates

8 Sets of Scheduler Function with RTC(Real Time Clock)

255 Presets (46 Presets reserved for Hot Keys) / 10 Swings / 4 Patterns / 8 Groups

Frame Freeze Function

Dual Power Input (AC 24V or DC 12V)

Vandalproof / Weatherproof with Built-in Fan & Heater

Waterproof (IP 67)

Wall or Ceiling Mount INCLUDED

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Camera	Image Sensor	6.49mm (1/2.8 Type) CMOS Sensor
	Resolution	3M Pixels (2096 × 1561)
	ISP	XDI-II
	Zoom	Optical ×30 & Digital ×12
	Focal Length	F1.6~5.0, f=4.3~129.0 mm
	Gain Control	Auto / Low / Middle / High
	Shutter Control	Auto / Manual (1/30 ~ 1/10,000 SEC.)
	White Balance	Auto / ATW / One Push / Manual
	Day & Night	Auto / Day / Night (ICR)
	Minimum Illuminance	0.8 Lux (Color, AGC 30, Sens-up Off) / 0.1 Lux (B/W, AGC 30, Sens-up Off)
	BLC	WDR / BLC / Off
	Sens-up	Off / Auto (x2, x3, x4, …x64)
	NR (Noise Reduction)	3D-DNR (Off / Low / Middle / High)
	Privacy Zone	8 Masks with Spherical Coordinate
	Image Stabilization	On / Off
Pan/Tilt	Range	Pan : 360°(Endless) / Tilt : 90°
	Pan/Tilt Speed	Preset : 500° / SEC.
		Manual : 0.05° ~ 360° / SEC. (Zoom Proportional)
		Swing : 10°~180° / SEC.
	Preset	255 Presets (46 Presets reserved for Hot Keys)
	Pattern	4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern]
	Swing	10 Swings
	Group	8 Groups (MAX. 40 Actions with The Combination of Preset, Pattern and Swing)
	Scheduler Function	8 Scheduler Functions with RTC(Real Time Clock)
	Other Functions	Auto Flip, Auto Parking, Power-up Action & etc.
Video	Output	2 x BNC (HD-SDI and CVBS)
	HD-SDI Standard	HDcctv V1.0 / 1.485Gb/s / SMPTE 292M
		Resolution : 1080p30, 1080i60, 720p60/30
	CVBS	1.0 Vp-p
RTC(Real Time Clock)	YES (RTC Battery Backup Time : Approximate 2 Weeks)
OSD	YES (English)
Serial Port	Port	RS-485 for PTZ Control
	Protocol	Pelco-D, Pelco-P Selectable
Sensor / Alarm	Sensor Input	3 Inputs, Photo-Coupler Type, DC 5V~12V
	Alarm Output	1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A
Physical	Mount Bracket	Wall Mount Bracket or Ceiling Mount Bracket
	Dimension	Dome : Ø150mm / Ø5.9"
		Wall Mount : 200(Ø) × 408(H) [mm] / 7.87"(Ø) × 16.1"(H)
		Ceiling Mount : 300 × 309(H) [mm] / 11.8" × 12.2"(H)
	Weight	Approximate 3.6 Kg / 7.9 Lbs with Wall Mount Bracket
		Approximate 3.4 Kg / 7.5 Lbs with Ceiling Mount Bracket
	Material	Dome : Poly Carbonate / Housing : Aluminum
	Rated Power	Dual Power Support : DC 12V / 1.8A or AC 24V / 2.0A
	Waterproof	IP 67
	Fan	Always ON
	Heater	Operation Start from Internal Temperature 10 °C (50°F)
	Operating Temp.	-30°C ~ 50°C (-34°F ~ 122°F)
