> Item #658

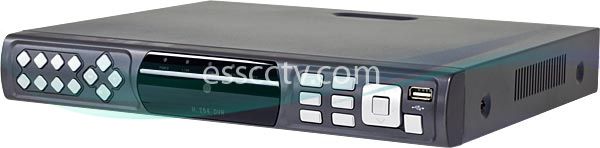

Economic Entry-Level DVR: 16ch 480 FPS Real-time Record, support Smart Phones

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for Economic Entry-Level DVR: 16ch 480 FPS Real-time Record, support Smart Phones: DS-SD16

Additional Image for Economic Entry-Level DVR: 16ch 480 FPS Real-time Record, support Smart Phones: Front

Additional Image for Economic Entry-Level DVR: 16ch 480 FPS Real-time Record, support Smart Phones: Back

Additional Image for Economic Entry-Level DVR: 16ch 480 FPS Real-time Record, support Smart Phones: Contents

Model: DS-SD16
Item #: 658

MSRP: ~~$425.00~~
Our Price:

$215.00

(You save: $210.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: DVST PTS960H-16

H.264® contains a number of new features that allow it to compress video much effectively than older standards and to provide more flexibility for application to a wide variety of network environments. H.264® is the latest and more advanced video standard developed jointly by ITU and MPEG®. It is also known as MPEG-4® Part 10, or MPEG-4® AVC.

Standard H.264 Compression Format

Embedded high-speed microcontroller & Linux system, high stability, auto system upgrading

Support Time, Motion, and Alarm searching mode

Support mouse, IR remote control, and Front panel

Support network remote, USB backup

Pentaplex, 16 channel playback simultaneously

Recording bit/frame adjustable

Central Management System

Support live display, record, playback, backup, and network

Supports 3G, GPRS, WIFI wireless of mobile phone network monitoring function (phone monitoring, capture, PTZ control)

Built-in VGA interface, output resolution up to 1024*768

More interface; support USB, alarm, intercom, PTZ control

Easy & Free Upgrade

Video Compression	H.264® CODEC
Video Input	BNC*16 (Composite signal 1.0Vp-p 75Ω)
Output (BNC)	BNC*1 (Composite signal 1.0Vp-p 75Ω)
Output (VGA)	Built-in VGA interface (12801024, 1024768, 800*600)
Video Record Frame Rate	NTSC : 30fps/ch
Recording Resolution	NTSC : 360*240 480fps
Operation Mode	Live display, Record, Playback, Backup, Network
Recording Mode	Manual, Time, Motion, Remote
Audio Input/Output	4ch(RCA)/1ch(RCA)
Audio encode/decode	ADPCM
PTZ Camera Control	YES(Pelco-D&Pelco-P)
HDD Storage	1pc SATA HDD
Network Interface	RJ45(10M/100M adjustable)
Network protocol	TCP/IP, UDP, HTTP, NTP, DHCP, DDNS
CMS	YES(Maximum:16 different IP addresses)
IR Remote Control	YES
Multilingual OSD	YES
Voltage input	12V
