> Item #656

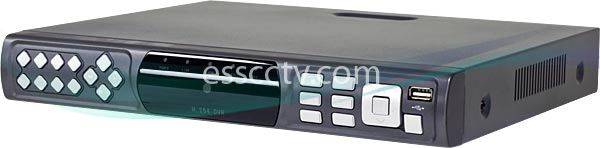

Economic Entry-Level DVR: 4ch 120 FPS Real-time Record, support Smart Phones

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for Economic Entry-Level DVR: 4ch 120 FPS Real-time Record, support Smart Phones: DVST-SD-04

Additional Image for Economic Entry-Level DVR: 4ch 120 FPS Real-time Record, support Smart Phones: Front

Additional Image for Economic Entry-Level DVR: 4ch 120 FPS Real-time Record, support Smart Phones: Back

Additional Image for Economic Entry-Level DVR: 4ch 120 FPS Real-time Record, support Smart Phones: Contents

Model: DVST-SD-04
Item #: 656

MSRP: ~~$277.00~~
Our Price:

$115.00

(You save: $162.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: DVST PTS960H-04

The model has been upgraded to a new ST series model with 960H support

H.264® contains a number of new features that allow it to compress video much effectively than older standards and to provide more flexibility for application to a wide variety of network environments. H.264® is the latest and more advanced video standard developed jointly by ITU and MPEG®. It is also known as MPEG-4® Part 10, or MPEG-4® AVC.

Standard H.264 Compression Format

Embedded high-speed microcontroller & Linux system, high stability, auto system upgrading

Support Time, Motion searching mode

Support mouse, IR remote control

Support network remote, USB backup

Pentaplex, 4channel playback simultaneously

Recording bit/frame adjustable

Central Management System

Support live display, record, playback, backup, and network

Supports 3G, GPRS, WIFI wireless of mobile phone network monitoring function (phone monitoring, capture, PTZ control)

Built-in VGA interface, output resolution up to 1024*768

More interface; support USB, alarm, intercom, PTZ control

Easy & Free Upgrade

Video Compression	H.264® CODEC
Video Input	BNC*4 (Composite signal 1.0Vp-p 75Ω)
Output (BNC)	BNC*1 (Composite signal 1.0Vp-p 75Ω)
Output (VGA)	Built-in VGA interface (12801024, 1024768, 800*600)
Video Record Frame Rate	NTSC : 30fps/ch
Recording Resolution	NTSC : 360*240 120fps
Operation Mode	Live display, Record, Playback, Backup, Network
Recording Mode	Manual, Time, Motion, Remote
Audio Input/Output	1 RCA
Audio encode/decode	ADPCM
PTZ Camera Control	YES(Pelco-D&Pelco-P)
HDD Storage	1pc SATA HDD
Network Interface	RJ45(10M/100M adjustable)
Network protocol	TCP/IP, UDP, HTTP, NTP, DHCP, DDNS
CMS	YES(Maximum:16 different IP addresses)
IR Remote Control	YES
Multilingual OSD	YES
Voltage input	12V
