> Item #639

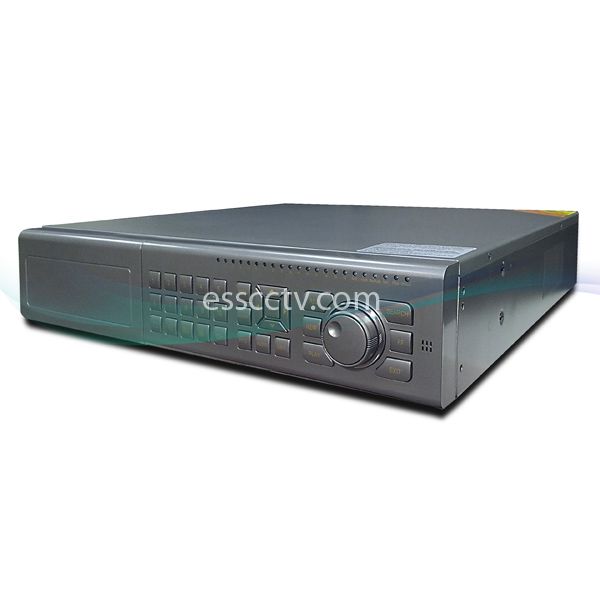

HD-SDI DVR system, 16ch 1080p recording, HDMI output, supports iPhone, Android

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for HD-SDI DVR system, 16ch 1080p recording, HDMI output, supports iPhone, Android: LTD2716XD-L

Additional Image for HD-SDI DVR system, 16ch 1080p recording, HDMI output, supports iPhone, Android: Front Panel

Additional Image for HD-SDI DVR system, 16ch 1080p recording, HDMI output, supports iPhone, Android: Back Panel

Model: LTD2716XD-L
Item #: 639

MSRP: ~~$2,225.00~~
Our Price:

$1,785.00

(You save: $440.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: XVST-NMS-16

LTD2716XD-L adopts high performance video processing chips and embedded Linux. It utilizes the most advanced technologies, such as standard H.264, 16 Ch 1080P Record and 16 Ch Playback, Compatible with HDMI 1920*1080 output, full remote control via IE browser, mobile surveillance (by cell phones), etc.. It has all the powerful functions and is of high stability. LTD2708XD-L supports mobile phone surveillance on iPhone (iPad/ iPad2), Blackberry, Google Phone

Standard H.264 format

Multiplex mode: recording, playback, setup, backup, network and mobile phone surveillance simultanously

Sophisticated Network Functions: remote surveillance, remote playback,

remote recording, remote control DVR, remote menu setup, remote recording backup

Various recording mode: timer, motion detection, alarm, and watermark

Recording picture quality, resolution & recording frame rate configurable

CIF Realtime recording

Multi-method searching: Time, Event(Alarm, Motion Detection), Recording List

Easy Backup: download recorded files via IE browser through network, or to external USB2.0 device

Support IE browser, remote menu setup

Support 8 CH playback

Support PTZ control with preset and auto-cruise

Support full mouse control via USB mouse

Support VGA output, display resolution adjustable up to 1280*1024.

Long hour recording (1 month real time non-stop recording with 250G HDD, 1 channel)

Supports mobile phone surveillance on iPhone, Google Phone

Support CMS Central Management System for multiple sites monitoring

Support multi-level user management

2U case

optional HDD: bare-bone system, 2TB or 4TB HDD

System	Compression Format	H.264
System	OS	Embedded Linux
Video	Input	SDIx16, CVBSx1
	VGA Output	1*VGA:1280x1024
	BNC	1*BNC Mainout
	Loop Output	-
	Spot Output	1*Spot
	HDMI	Compatible with HDMI 1920*1080 output, progressive scan, 60Hz frame rate.
Audio	Audio Input	16CH
	Audio Output	1CH
	Bidirectional Talk	Yes
Recording	1080P	7(NTSC)/6(PAL)fps
	D1	-
	Recording Mode	Schedule, Manual,Motion, Sensor
Playback	Playback Channel	16CH
Playback	Search Mode	Time, Event, File Management, Image(snapshot)
Backup	USB Disk	1 USB2.0 port
	DVD Burner	Optional
	Backup Format	DAT or AVI
Dual Stream	Master Stream	1CH (selectable) 30fps @ 1080P
Dual Stream	Network Stream	1-30fps @ CIF
Remote Application	Browser	IE (windows XP/vista/7), Safari(Mac OS)
	CMS	YES
	Mobile Phone OS	SuperCam/pro/HD for iPhone(iPad/iPad2)/ Blackberry/Android
	User Access	18 users online with professional authority management
Alarm	Alarm Input	16CH
Alarm	Alarm Output	4CH
Storage	HDD (Each max. size 2 TB	6
	e-SATA	2
	Max HDD after Deploying DVD Writable Driver	4
PTZ	PTZ	1*RS485
	PTZ Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP, VISCA, SAMSUNG,RM110,HY
	PTZ Control	pan, tilt, zoom, preset, cruise, trace
Network	Ethernet	1,000 Mbps Ethernet (RJ-45)
Network	Protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Remote Control	1
	Power Supply	100VAC ~ 240VAC
	Operating Temperature	0°C ~50°C
	Humidity	10% ~ 90% Humidity
	Dimension	16.75” (l) x 17.75 (w) x 3.5” (h)
