> Item #638

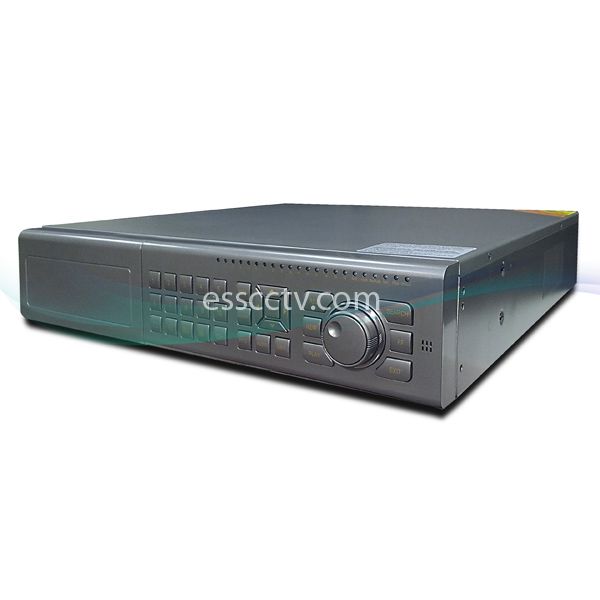

HD-SDI DVR system, 8ch 1080p recording, HDMI output, supports iPhone, Android

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for HD-SDI DVR system, 8ch 1080p recording, HDMI output, supports iPhone, Android: LTD2708XD-L

Additional Image for HD-SDI DVR system, 8ch 1080p recording, HDMI output, supports iPhone, Android: Front Panel

Additional Image for HD-SDI DVR system, 8ch 1080p recording, HDMI output, supports iPhone, Android: Back Panel

Model: LTD2708XD-L
Item #: 638

MSRP: ~~$1,699.00~~
Our Price:

$1,343.00

(You save: $356.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: XVST NMS-08

LHS-XD08L adopts high performance video processing chips and embedded Linux. It utilizes the most advanced technologies, such as standard H.264, 8 Ch 1080P Record and 8 Ch Playback, Compatible with HDMI 1920*1080 output, full remote control via IE browser, mobile surveillance (by cell phones), etc.. It has all the powerful functions and is of high stability. LHS-XD08L supports mobile phone surveillance on iPhone (iPad/ iPad2), Blackberry, Google Phone

Standard H.264 format

Multiplex mode: recording, playback, setup, backup, network and mobile phone surveillance simultanously

Sophisticated Network Functions: remote surveillance, remote playback,

remote recording, remote control DVR, remote menu setup, remote recording backup

Various recording mode: timer, motion detection, alarm, and watermark

Recording picture quality, resolution & recording frame rate configurable

CIF Realtime recording

Multi-method searching: Time, Event(Alarm, Motion Detection), Recording List

Easy Backup: download recorded files via IE browser through network, or to external USB2.0 device

Support IE browser, remote menu setup

Support 8 CH playback

Support PTZ control with preset and auto-cruise

Support full mouse control via USB mouse

Support VGA output, display resolution adjustable up to 1280*1024.

Long hour recording (1 month real time non-stop recording with 250G HDD, 1 channel)

Supports mobile phone surveillance on iPhone, Google Phone

Support CMS Central Management System for multiple sites monitoring

Support multi-level user management

2U case

optional HDD: bare-bone system, 2TB or 4TB HDD

System	Compression Format	H.264
System	OS	Embedded Linux
Video	Input	SDIx8, CVBSx1
	VGA Output	1*VGA:1280x1024
	BNC	1*BNC Mainout
	Loop Output	1*Loopout
	Spot Output	1*Spot
	HDMI	Compatible with HDMI 1920*1080 output, progressive scan, 60Hz frame rate.
Audio	Audio Input	8CH
	Audio Output	1CH
	Bidirectional Talk	Yes
Recording	1080P	7(NTSC)/6(PAL)fps
	D1	-
	Recording Mode	Schedule, Manual,Motion, Sensor
Playback	Playback Channel	8CH
Playback	Search Mode	Time, Event, File Management, Image(snapshot)
Backup	USB Disk	1 USB2.0 port
	DVD Burner	Optional
	Backup Format	DAT or AVI
Dual Stream	Master Stream	1CH (selectable) 30fps @ 1080P
Dual Stream	Network Stream	1-30fps @ CIF
Remote Application	Browser	IE (windows XP/vista/7), Safari(Mac OS)
	CMS	YES
	Mobile Phone OS	SuperCam/pro/HD for iPhone(iPad/iPad2)/ Blackberry/Android
	User Access	18 users online with professional authority management
Alarm	Alarm Input	8CH
Alarm	Alarm Output	4CH
Storage	HDD (Each max. size 2 TB	4
	e-SATA	2
	Max HDD after Deploying DVD Writable Driver	4
PTZ
	PTZ	1*RS485
	PTZ Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP, VISCA, SAMSUNG,RM110,HY
	PTZ Control	pan, tilt, zoom, preset, cruise, trace
Network	Ethernet	1,000 Mbps Ethernet (RJ-45)
Network	Protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Remote Control	1
	Power Supply	100VAC ~ 240VAC
	Operating Temperature	0°C ~50°C
	Humidity	10% ~ 90% Humidity
	Dimension	16.75” (l) x 17.75 (w) x 3.5” (h)
