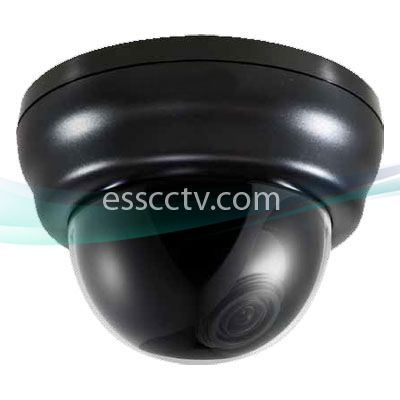

HD-SDI Indoor Dome camera: 2 Megapixel 1080p image, 2.8~12mm Adjustable Lens, 3 Axis
Images are for illustration purpose and may not show the actual product.
Model:
XDL 202V
Item #: 623
MSRP:
$357.00
Our Price:
$145.00
(You save: $212.00)
- 1/3 inch SONY 2 Mega-pixel CMOS, Progressive Scan
- Auto-IRIS V/F Lens: 2.8~12mm megapixel
- 1080p Resolution
- Horizontal Resolution: 1000+ TVL
- Minimum Illumination - 1.0 Lux at F1.2
- HD-SDI output / Standard CCTV output available both in one camera
- 3DDNR (3D Digital Noise Reduction) - Clear motion noise
- OSD (On Screen Display) - Easy camera setup
- 3-Axis Construction : By adjusting '3-Axis' control, you get a straight view regardless whether camera is installed on a wall or ceiling
- 12V DC
- HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors
What is the benefit of HD-SDI cameras?
HD-SDI stands for High-Definition Serial Digital Interface.
HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.
Actual Image Recorded
Digital Zoom on above image 1
Digital Zoom on above image 2
| Resolution |
HD-SDI(1080P, 720P) / 1000 TV Line Over |
| Sensor |
1/3“ SONY CMOS |
| Total Pixels |
2010(H) X 1108(V) = 2,227,080 |
| Effective Pixels |
1944(H) X 1092(V) = 2,122,648 |
| Scanning System |
Progressive Scan |
| S/N (Y Signal) |
More than 52 dB(AGC Off) |
| Video Output |
SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm) |
| Min. Illumination |
1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance |
AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic Shutter Speed |
AUTO / MANUAL(1/30sec ~ 1/30,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens up |
OFF / X2 / X3 / X4 |
| DNR |
OFF / LOW / MIDDLE / HI |
| WDR / BLC |
OFF / WDR / BLC |
| HLM |
OFF / SET |
| ACE |
OFF / ON |
| Day & Night |
AUTO (Day Night TIME Change), COLOR, B/W |
| Privacy |
OFF / ON (28 Zone) |
| Motion Detection |
OFF / ON |
| D. Zoom |
0 ~ X112 |
| FLIP |
OFF / ON |
| FREEZE |
OFF / ON |
| Language |
ENGLISH |
| Sharpness |
ADJUSTABLE (0~10 STEP) |
| Mirror |
ON / OFF |
| COMM. |
RS-485(PELCO-D) |
| Operating Temperature / Humidity |
-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temperature / Humidity |
-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH |
| Power |
DC 12V |
| HD-SDI |
100~150m |
| Transmission range |
Max transmission range is depends on the cable manufacturer and the installtion environment. |
