> Item #620

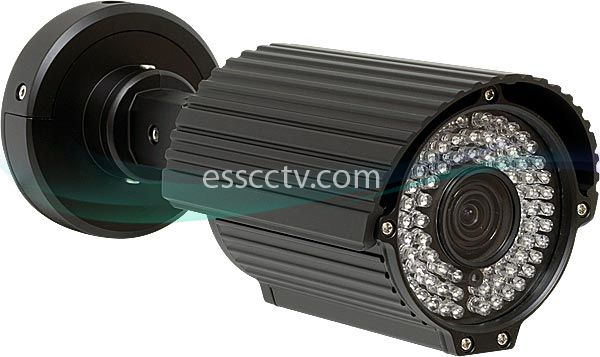

EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED: XIR-2182FV

Additional Image for EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED: Back Panel

Additional Image for EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED: Slide Mount 1

Additional Image for EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED: Slide Mount 2

Additional Image for EYEMAX HD-SDI XIR-2182FV Outdoor Bullet IR camera: 2 MP, 2.8~12mm Lens, 80 IR LED: Slide Mount 3

Model: XIR-2182FV
Item #: 620
Manufacturer: Eyemax

MSRP: ~~$260.00~~
Our Price:

$165.00

(You save: $95.00)

1/3 inch SONY CMOS, Progressive Scan

2.8~12mm DC Auto Iris Vari-focal Megapixel lens

External lens and focus control

1080p Resolution

80 IR LEDs

Min Illumination : 0 Lux

Horizontal Resolution: 1000+ TVL

Dual Output: HD-SDI and Analog out

IP68 Weather-Resistant housing

WDR: wide dynamic range

ICR: True Day & Night

3DNR, OSD control - joystick on the back panel

12V DC

HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Resolution	HD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor	1/3“ SONY CMOS
Total Pixels	2010(H) X 1108(V) = 2,227,080
Effective Pixels	1944(H) X 1092(V) = 2,122,648
Scanning System	Progressive Scan
S/N (Y Signal)	More than 52 dB(AGC Off)
Video Output	SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm)
Min. Illumination	0 Lux at IR On
White Balance	AUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter Speed	AUTO / MANUAL(1/30sec ~ 1/30,000sec)
Brightness	Adjustable (0~20 Step)
Sens-up	OFF / X2 / X3 / X4
DNR	OFF / LOW / MIDDLE / HI
WDR / BLC	OFF / WDR / BLC
HLM	OFF / SET
ACE	OFF / ON
Day & Night	AUTO (Day Night TIME Change), COLOR, B/W
Privacy	OFF / ON (28 Zone)
Motion Detection	OFF / ON
D. Zoom	0 ~ X112
FLIP	OFF / ON
FREEZE	OFF / ON
Language	ENGLISH
Sharpness	ADJUSTABLE (0~10 STEP)
Mirror	ON / OFF
COMM.	RS-485(PELCO-D)
Operating Temperature / Humidity	-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity	-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH
Power	DC 12V
HD-SDI	100~150m
Transmission range	Max transmission range is depends on the cable manufacturer and the installtion environment.
