> Item #60

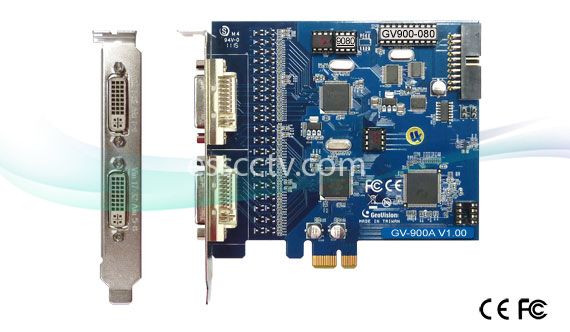

GENUINE GEOVISION DVR card 8ch Video Inputs, 240 FPS, PCI-E, v8.5 software, 64 bit Windows 7 support

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GENUINE GEOVISION DVR card 8ch Video Inputs, 240 FPS, PCI-E, v8.5 software, 64 bit Windows 7 support: GV-900A-8

Additional Image for GENUINE GEOVISION DVR card 8ch Video Inputs, 240 FPS, PCI-E, v8.5 software, 64 bit Windows 7 support: Retail Box

Additional Image for GENUINE GEOVISION DVR card 8ch Video Inputs, 240 FPS, PCI-E, v8.5 software, 64 bit Windows 7 support: Software DVD

Model: GV-900A-8
Item #: 60
Manufacturer: GeoVision

MSRP: ~~$945.00~~
Our Price:

$557.00

(You save: $388.00)

One GV-900A Card provides up to 32 video channels and 8 audio channels, recording up to 240 / 200 fps (NTSC / PAL) in total with H.264 software compression.

DVR Card Manufacturer : GeoVision

Camera Inputs: 8 Camera Inputs

Display/Record Frame Rate: 240/240

Adjustable Camera Frame Rate: Supported For Each Camera

Included IP Camera Support: Up to 8

RCA (TV) Video Output: No RCA Output

Video Format: NTSC, PAL

Video Compression: Geo MPEG4, Geo H264

Recording Mode: Continuous / Motion / Schedule

Audio Inputs: 8 Audio Inputs

Card Interface: PCI Express

Internet: Multiple simultaneous logins supported.

Instruction Manual: Included

Power Search: Advanced Search Functionality Provided

Software Version: 8.5 or latest version upon release

Packaging: New in Retail Box

3 Year Warranty

			GV-900A	GV-900A x 2
Interface			PCI-E (x1)	PCI-E (x1) x 2
Input Type			DVI
Video Input			8, 16, 32 Cams	16, 24, 32 Cams
Audio Input			8 Channels	16 Channels
Recording Rate	CIF	NTSC	8-port: 240 fps 32-port: 240 fps	8+8 port: 480 fps 16+16 port: 480 fps
		PAL	8-port: 200 fps 32-port: 200 fps	8+8 port: 400 fps 16+16 port: 400 fps
	D1	NTSC	8-port: 240 fps 32-port: 120 fps	8+8 port: 480 fps 16+16 port: 240 fps
		PAL	8-port: 200 fps 32-port: 100 fps	8+8 port: 400 fps 16+16 port: 200 fps
Display Rate	CIF	NTSC	8-port: 240 fps 32-port: 240 fps	8+8 port: 480 fps 16+16 port: 480 fps
		PAL	8-port: 200 fps 32-port: 200 fps	8+8 port: 400 fps 16+16 port: 400 fps
	D1	NTSC	8-port: 240 fps 32-port: 120 fps	8+8 port: 480 fps 16+16 port: 240 fps
		PAL	8-port: 200 fps 32-port: 100 fps	8+8 port: 400 fps 16+16 port: 200 fps
Video Resolution		NTSC	704 x 480, 704 x 480 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 240, 320 x 240
		PAL	704 x 576, 704 x 576 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 288, 320 x 240
Video Compression Format			Geo MPEG4, Geo H264
Audio Compression Format			AAC (16 kHz / 16 bit)
GV-NET/IO Card Support			Yes
Dimensions (W x H)			120 x 112 mm / 4.7 x 4.4 in
Installation Guide			GV-900A
Note: 1. GV-900A is currently not compatible with VIA series and ATI series chipset motherboards. 2. 16-port has the same recording rate and display rate as 32-port. 3. Specifications are subject to change without notice.
Minimum System Requirements For One Card
OS Supported	32-bit		Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit		Windows 7 / Windows Server 2008
CPU			Pentium 4, 3.0 GHz with Dual Core
RAM			2 x 1 GB Dual Channels
HDD			160 GB
VGA			ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E
DirectX			9.0c
Minimum System Requirements For Two Card
OS Supported	32-bit		Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit		Windows 7 / Windows Server 2008
CPU			Core i5-750, 2.66 GHz
RAM			2 x 1 GB Dual Channels
HDD			500 GB
VGA			ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E
DirectX			9.0c
