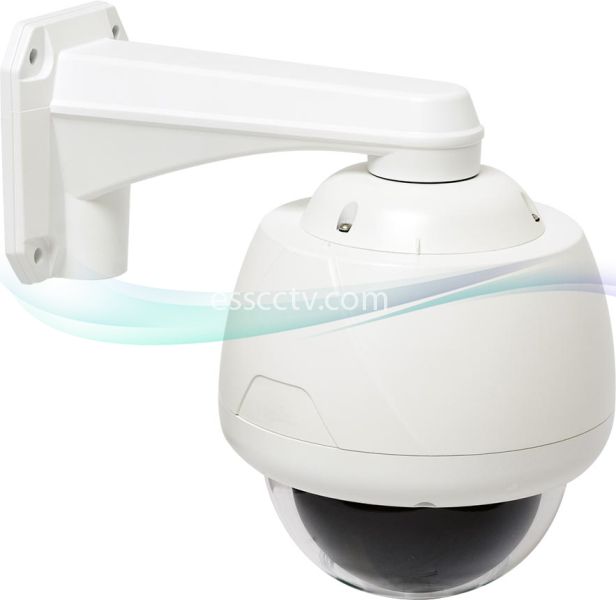

Powerful Zoom Camera & Setup Options

• Image Sensor : 1/4" Double density interline transfer CCD
• ×37 Optical Zoom, ×12 Digital Zoom
• Day & Night, Privacy Mask, WDR and HLC
• SNR (Super Noise Reduction) Function
• Various Focus Mode : Auto-Focus, Manual Focus, Semi-Auto Focus
• Various Setup Options in OSD Menu

Powerful Pan/Tilt Functions

• MAX. 360°/sec High Speed Pan/Tilt Motion
• With the Vector Drive Technology, Pan/Tilt motions are accomplished along the shortest path. As a result, the time to target view is remarkably short and the video on the monitor is very natural in monitoring.
• With the Micro-Stepping Control Technology, the video looks very natural at high zoom magnification during a jog operation on a controller since the camera can be controlled by 0.05°/sec. Hence it is very easy to make the camera focus on desired target views at high zoom magnification. Additionally it is easy to make the camera focus on desired positions with zoom-proportional pan/tilt movement.

Preset, Pattern, Swing, Group, Privacy Mask and More…

• MAX. 127 Presets are programmable and each preset can have its own parameter values independently from the other presets.
• MAX. 8 sets of Swing are programmable. This function is that the camera moves repetitively between two preset positions at programmed speeds.
• MAX. 4 Patterns are programmable. This function is that the camera memorizes the path (mostly curve path) by the joystick of the controller and revives the trajectory operated by the joystick as closely as possible.
• MAX. 8 sets of Group are programmable. This function is that the camera memorizes the combination of Presets, Pattern and/or Swings sequently and runs Presets, Pattern and/or Swings repetitively. A Group can be combined upto 20 functions with any of Preset/Pattern/Swing.
• MAX. 8 Privacy Masks are programmable, not to intrude on any other's privacy.

PTZ(Pan/Tilt/Zoom) Control

• With the RS-485 communication connection, MAX. 255 units of cameras can be connected to a single controller.
• Pelco-D or Pelco-P protocols can be selected as a control protocol in the current firmware version.

OSD(On Screen Display) Menu

• OSD menu is provided to display the status of camera and to configure the functions interactively.
• The information such as Camera ID, Pan/Tilt Angle, Direction, Alarm Input and Preset is displayed on screen.

Alarm In/Out Function(Only for the models which have I/O function)

• 3 alarm sensor inputs and 1 alarm sensor outputs are available.
• Alarm sensor input is decoupled with photo-couplers to avoid external electric noise and shock perfectly.
• Both of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and the signal range of the sensor input is from DC 5.0V to 12.0V for various applications.
• The camera can be set to move to a Preset position or to run functions such as Pattern, Swing and Group when there are external sensor activations. Also "Post Alarm" function is possible, which is supposed to activate after user-defined time period and sequentially in succession to the action by external sensor activations.
