> Item #580

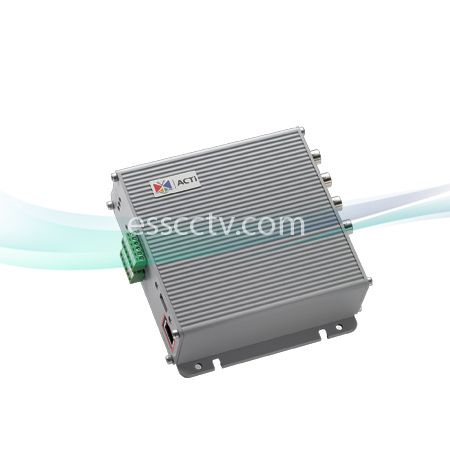

ACTi Video Server/Encoder, 4 channel quad image over Ethernet, Full D1 resolution, MPEG4/MJPEG

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for ACTi Video Server/Encoder, 4 channel quad image over Ethernet, Full D1 resolution, MPEG4/MJPEG: ACI-ACD2000Q

Additional Image for ACTi Video Server/Encoder, 4 channel quad image over Ethernet, Full D1 resolution, MPEG4/MJPEG: Indication

Additional Image for ACTi Video Server/Encoder, 4 channel quad image over Ethernet, Full D1 resolution, MPEG4/MJPEG: Drawing

Additional Image for ACTi Video Server/Encoder, 4 channel quad image over Ethernet, Full D1 resolution, MPEG4/MJPEG: Display Modes

Model: ACI-ACD2000Q
Item #: 580
Manufacturer: ACTi

MSRP: $512.50
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please add to cart for your special sale price!

25/30 fps at full D1 resolution

Selectable MPEG-4 SP, MJPEG compressions

Full-screen or quad image display

Two-way audio

Video motion detection (per channel)

4ch Analog Video in, Quad mode available

Digital input and digital output

Serial ports for PTZ control

Supported Modes:

Quad - D1 only: 30/25 FPS (NTSC/PAL)

Sequential - D1 only: 30/25 FPS (NTSC/PAL)

Single - D1: 7 FPS x 4 independent channels

Single - D1: 15/12 FPS (NTSC/PAL) x 4 independent channels

Device
Device Type	Video Encoder
Number of Channels	4
PTZ
Protocol	Pelco-D, Pelco-P V1 and V2, Dynacolor, Sony VISCA, American Dynamics
Video
Compression	MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution	Quad mode/ Sequential mode: 30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL) Single mode: 7 fps at 720 x 480 (Full D1, NTSC/PAL) 15 fps at 352 x 240 (CIF, NTSC); 12 fps at 352 x 288 (CIF, PAL)
Multi-Streaming	Multiple streams based on single configuration
Bit Rate	28 Kbps - 3 Mbps (per stream)
Bit Rate Mode	Constant, Variable
Image Enhancement	Brightness; Saturation; Contrast
Text Overlay	Camera name and video loss alert
Audio
Compression	8 kHz, Mono, PCM, 16 bit encoding
Audio-In	3.5mm Phone Jack
Audio-Out	3.5mm Phone Jack
Network
Protocol & Service	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port	1, Ethernet (10/100 Base-T), RJ-45 connector
Security	IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
Alarm
Alarm Trigger	Video motion detection (1 region per channel); External device through digital input
Alarm Response	Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
Interface
Analog Video Input	4, CVBS, 1.0Vp-p with 75Ω BNC connector
Digital Input	2, terminal block
Digital Output	2, terminal block
Serial Port	RS-485, RS-422, RS-232, terminal block
General
Power Source / Consumption	DC 12V ±10% / 5.0 W
Weight	430 g (0.95 lb)
Dimensions (W x H x D)	119 mm x 41.7 mm x 122 mm (4.69" x 1.65" x 4.81")
Operating Temperature	0 °C ~ 50 °C (32 °F ~ 122 °F)
Operating Humidity	10% ~ 85% RH
Approvals	Video Encoder: CE, FCC; Adapter: CE, TUV-GS, UL, RCM, CCC
Integration
Unified Solution	Fully compatible with ACTi software
ISV Integration	Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser	Microsoft Internet Explorer 6.0 or newer
