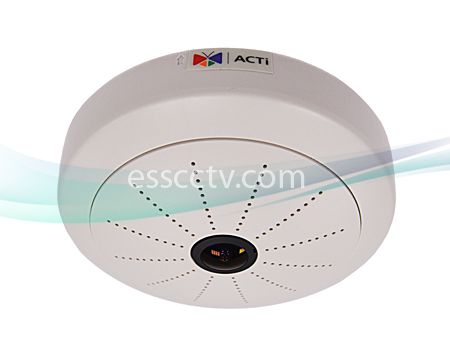

ACTi 4 Megapixel IP Hemispheric Camera Full HD 1080p, ePTZ, PoE, H.264/MJPEG Dual Stream

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for ACTi 4 Megapixel IP Hemispheric Camera Full HD 1080p, ePTZ, PoE, H.264/MJPEG Dual Stream: AC-KCM-3911

Additional Image for ACTi 4 Megapixel IP Hemispheric Camera Full HD 1080p, ePTZ, PoE, H.264/MJPEG Dual Stream: Indication

Additional Image for ACTi 4 Megapixel IP Hemispheric Camera Full HD 1080p, ePTZ, PoE, H.264/MJPEG Dual Stream: Drawing

Model: AC-KCM-3911
Item #: 579
Manufacturer: ACTi

MSRP: $945.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please add to cart for your special sale price!

1/2.5" Progressive Scan CMOS

4 Megapixel Image

True Day and night function with mechanical IR cut filter (ICR)

Minimum illumination 0.06 lux at F2.8

180°/360° panorama and ePTZ view

Built-in f1.05 mm / F2.8 Megapixel Fisheye lens

12 fps at Full HD 1080p (maximum 2032 x 1920 resolution)

Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming

Up to 6 cropped regions as independent channels

Two-way audio

Video motion detection

Digital input and digital output

ExDR ( Extreme Dynamic Range)

2D+3D Digital Noise Reduction

MircoSD/ MircoSDHC card slot for local storage

180 degree view with Wall mount / 360 degree view with Ceiling mount

Device
Device Type	Hemispheric Camera
Image Sensor	Progressive Scan CMOS
Sensor Size	1/2.5 “ (5.7 x 4.28 mm)
Day / Night	Yes
Minimum Illumination	Color: 1.63 lux at F2.8 (30 IRE, 2400°K); B/W: 0.06 lux at F2.8 (30 IRE, 2400°K)
Color to B/W switch	ISP based switch, configurable
Mechanical IR Cut Filter	Yes
IR Sensitivity Range	700 - 1100 nm
IR LED	No
Electronic Shutter	1 /15 - 1/2000 sec (auto mode)
Lens
Focal Length / Aperture	Fisheye Lens, 1.05 mm / F2.8
Iris	Fixed iris
Focus	Fixed focus
Horizontal Viewing Angle	180°
Video
Compression	H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution	6 fps at 2032 X 1920; 12 fps at 1920 X 1080; 12 fps at 1280 X 720; 12 fps at 640 X 480
Mode	180° / 360° Panorama, ePTZ, 6 VGA, Motion Detection Preset
Multi-Streaming	Simultaneous dual steams based on two configurations in single view mode; Multiple streams based on single configuration in 6 cropped VGA mode
Bit Rate	28 Kbps - 6 Mbps (per stream)
Bit Rate Mode	Constant, Variable
Image Enhancement	ExDR (Extreme Dynamic Range), White balance: automatic, hold and manual; Brightness; Saturation; Contrast; Edge enhancement; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging
Privacy Mask	4 configurable region
Text Overlay	User defined text on video
Audio
Compression	8 kHz, Mono, PCM, 16 bit encoding
Audio-In	Cable with 3.5mm Phone Jack
Audio-Out	Cable with 3.5mm Phone Jack
Network
Protocol & Service	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port	1, Ethernet (10/100 Base-T), RJ-45 connector
Security	IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
Alarm
Alarm Trigger	Video motion detection (3-6 regions, depending on video mode); External device through digital input
Alarm Response	Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
Interface
Digital Input	2, terminal block
Digital Output	2, terminal block
Local Storage	MicroSD/MicroSDHC memory card slot (card not included)
General
Power Source / Consumption	PoE Class 3 (IEEE 802.3af) / 9.6W DC 12V / 7.68W ( adapter not included)
Weight	425 g (0.93 lb)
Dimensions (Ø x H)	150mm x 45.32mm (5.9" x 1.8")
Mount Type	Flush, Wall, Pendant, Pole, Corner
Operating Temperature	-10 °C ~ 50 °C (14 °F ~ 122 °F)
Operating Humidity	10% ~ 85% RH
Approvals	E, FCC
Integration
Unified Solution	Fully compatible with ACTi software
ISV Integration	Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser	Microsoft Internet Explorer 6.0 or newer

Motion Detection Preset Mode Introduction

One of the most unique features of the hemispheric camera KCM-3911 is the Motion Detection Preset mode. By this mode it is possible to let the camera capture and stream out only the region that is currently activated by a moving object. As the object moves around the room, the camera will be able to track the person by switching the view automatically according to the location of the moving object.

The main benefit of such function is to have clear and enlarged overview of the intruders on the NVR live display and save bandwidth and storage by only streaming a specific region of the whole panorama view with much lower bitrate.

Since everything is done by camera itself, the integration with any third party NVR will be really easy - the NVR will just keep receiving the video stream on the same channel just like with conventional cameras, regardless of the changes in the video content as the camera tracks the person.

Basketball Court

The 4-Megapixel hemispheric camera KCM-3911 covers a huge basketball hall while providing important details of the people in the field of view. The floor space is 32 meters wide and 17 meters long. The camera has been installed 3.5 meters from the ground and with 1 meter distance from the white side border of the basketball court area, covering everything within the 180 degree panorama view.

Hemispheric Camera in School Lobby

KCM-3911 Hemispheric Camera mounted on the wall can have the 180-degree overview of everything in front of the camera. This way, one camera can cover the whole lobby.

Thanks to the powerful ISP designed by ACTi, the spherical distorted image is converted into a flat and rectangle-shaped view within the camera with restoring the normal proportions of the objects in the field of view. This way, there is no need for extra processing on remote software side, making KCM-3911 be easily integrated with any VMS.
