> Item #576

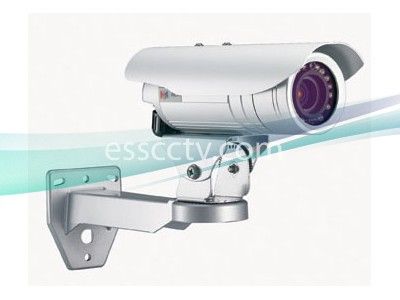

ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens: AC-TCM-1231

Additional Image for ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens: Side

Additional Image for ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens: Bottom

Additional Image for ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens: Indications

Additional Image for ACTi 1.3 Megapixel IP Outdoor Bullet Camera HD 720p, 24 IR LED, PoE, H.264/MJPEG Dual Stream, 3.3~12mm lens: Drawing

Model: AC-TCM-1231
Item #: 576
Manufacturer: ACTi

MSRP: $726.14
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please add to cart for your special sale price!

This Model is now discontinued.

If you specifically need this model, please contact us for availability

1/3" Progressive Scan CMOS

True Day and night function with mechanical IR cut filter (ICR)

Minimum illumination 0 lux with IR LED on

24 IR LED built-in

Built-in f3.3-12 mm / F1.6 Megapixel vari-focal lens

26 fps at HD 720p (max 1280 x 1024 resolution)

Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming

Two-way audio

Video motion detection

Weatherproof IP66 rated casing

WDR: Wide Dynamic Range

Optional Mounting Bracket sold separately

Indication Guide:

DC 12V Power Input

Audio Input / Output & Digital Input / Output

Reset Button

Ethernet Port

Power LED

Device
Device Type	Bullet Camera
Image Sensor	Progressive Scan CMOS
Sensor Size	1/3" (4.8 x 3.6 mm)
Day / Night	Yes
Minimum Illumination	Color: 0.5 lux at F1.0 (30 IRE, 2400°K) B/W: 0 lux (IR LED on)
Color to B/W switch	CDS sensor based switch, configurable
Mechanical IR Cut Filter	Yes
IR Sensitivity Range	700 - 1100 nm
IR LED	IR LED x 24 (850 nm)
Electronic Shutter	1/30 - 1/1,000 sec (60Hz); 1/25 - 1/1,000 sec (50Hz) (manual mode) 1/5 - 1/15,000 sec (auto mode)
Lens
Focal Length / Aperture	Vari-focal, f3.3 - 12 mm / F1.6
Iris	Fixed iris
Focus	Manual focus
Horizontal Viewing Angle	76.5° - 21.7°
Video
Compression	H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution	18 fps at 1280 x 1024 (SXGA); 26 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA); 30 fps at 320 x 240 (QVGA); 30 fps at 160 x 112 (QQVGA)
Multi-Streaming	Simultaneous dual streams based on two configurations
Bit Rate	28 Kbps - 6 Mbps (per stream)
Bit Rate Mode	Constant, Variable
S/N Ratio	More than 44 dB
Image Enhancement	White balance: automatic, hold, predefined and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; Auto exposure: automatic, predefined and manual; Flickerless
Privacy Mask	4 configurable region
Text Overlay	User defined text on video
Image Orientation	Image flip and mirror
Audio
Compression	8kHz, Mono, PCM, 16 bit encoding
Audio-In	Terminal block
Audio-Out	Terminal block
Network
Protocol & Service	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port	1, Ethernet (10/100 Base-T), RJ-45 connector
Security	IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
Alarm
Alarm Trigger	Video motion detection (3 regions); External device through digital input
Alarm Response	Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Upload video, snapshot to FTP server; Activate external device through digital output
Interface
Digital Input	1, terminal block
Digital Output	1, terminal block
General
Power Source / Consumption	PoE Class 3 (IEEE802.3af) / 8.16 W (IR on) DC 12V / 6.96 W (IR on) (adapter not included)
Weight	685 g (1.51 lb)
Dimensions (Ø x H)	77 mm x 220 mm (3.03"x 8.66")
Environmental Casing	Weatherproof (IP66 rated)
Operating Temperature	-20 °C ~ 50 °C (-4 °F ~ 122 °F)
Operating Humidity	10% ~ 85% RH
Approvals	Camera: CE, FCC, IP66
Integration
Unified Solution	Fully compatible with ACTi software
ISV Integration	Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser	Microsoft Internet Explorer 6.0 or newer
