> Item #556

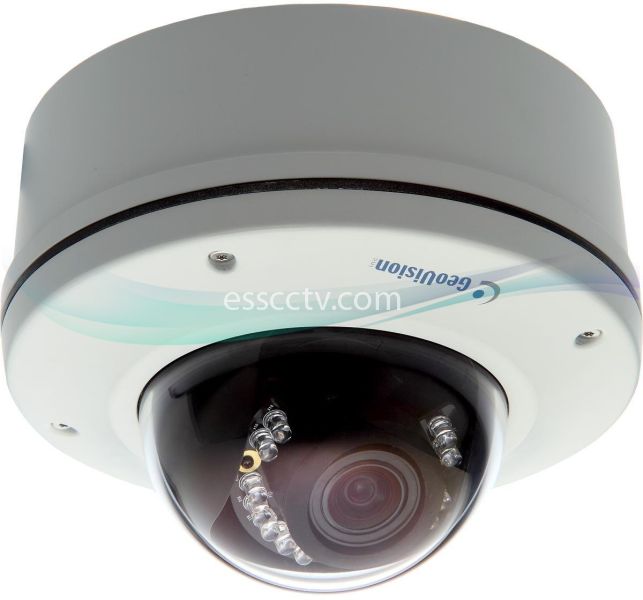

GEOVISION 1.3 Megapixel Network IP Camera: Outdoor Dome, 15 IR LED, Microphone, PoE

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Outdoor Dome, 15 IR LED, Microphone, PoE: GV-VD120D

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Outdoor Dome, 15 IR LED, Microphone, PoE: In-Ceiling Mount

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Outdoor Dome, 15 IR LED, Microphone, PoE: Drawing

Model: GV-VD120D
Item #: 556
Manufacturer: GeoVision

MSRP: ~~$552.00~~
Our Price:

$425.00

(You save: $127.00)

This Model has been discontinued and replaced by a new model.
Please follow the link for the replacing model: GV-VD1500

1/3" progressive scan Low Lux CMOS

Stream 1 from H.264 and MJPEG;

Stream 2 from H.264, MPEG4 and MJPEG

Up to 30 fps at 1280 x 1024

IK10+ rating

IP66 rating

2.7~9mm Wide-Angle Varifocal megapixel lens

3-axis mechanism (pan / tilt / roll)

Removable IR-cut filter for Day/Night function

External microphone

15 Intelligent IR LEDs

2-way audio

One sensor input and alarm output

TV-out support

Micro SD/SDHC Card Slot

DC12V / AC24V / PoE

Motion detection

Tampering alarm

Privacy mask

IP address filtering

Supports iPhone, iPad, Android & 3GPP

28 languages on Web interface

No SD/SDHC card slot & local storage function for Argentina

Camera
Image Sensor		1/3" progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Minimum Illumination	Color	0.15 Lux (1/30 sec), 0.08 Lux (1/5 sec)
	B/W IR ON	0 Lux
Shutter Speed		Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
Lens
Megapixel		Yes
Day / Night		Yes (with removable IR-cut filter)
Lens Type		Varifocal
Focal Length		2.7 ~ 9 mm
Maximum Aperture		F/1.3
Mount		Ø 14 mm
Angle of View	Diagonal	126° (W) ~ 38.2° (T)
	Horizontal	98.5° (W) ~ 29.8° (T)
	Vertical	78.7° (W) ~ 23.9° (T)
Operation	Focus	Manual (w / lock)
	Zoom	Manual (w / lock)
	Iris	DC
IR LED Quantity		15 IR LEDs
IR Distance		15 m / 50 ft (Max.)
Operation
Video Compression		H.264, MPEG4, MJPEG
Video Stream		Stream 1 from H.264 and MJPEGStream 2 from H.264, MPEG4 and MJPEG
Frame Rate		30 fps at 1280 x 1024* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed
Audio Compression		G.711, AAC (16 kHz / 16 bit) * AAC is only supported by GV-System V8.5 or later
Sensor Input		1 Input (Dry Contact)
Alarm Output		1 Digital Output (200mA 5V DC)
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16:9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16:9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Ethernet Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting		ø 14 mm
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 350°
	Tilt	10° ~ 90°
	Rotate	0° ~ 340°
Connectors	Power	3-pin terminal block, PoE
	Ethernet	RJ-45
	Audio	1 In (RCA female for microphone)1 Out (RCA female for speaker)
	Digital I/O	I/O Wires
	Auto Iris	DC drive
	Local Storage	Micro SD/SDHC memory card slot (for Class 6 card or above)
	TV-Out	BNC connector (640 x 480)
General
Operating Temperature		-20 °C ~ 50 °C / -4 °F ~ 122 °F
Humidity		10% to 90% (no condensation)
Power Source		12V DC / 24V AC / PoE
Max. Power Consumption		12 W
Dimensions	Camera Body	ø 165 x 125 mm / 6.49 x 4.92 in
	Cable Length	1 m / 3.28 ft
	Max. Cable Diameter	ø 16.7 mm / 0.66 in
	Max. Connector Diameter	ø 16.7 mm / 0.66 in
Weight		1.7 kg / 3.75 lb
Protection Classification		IP66
Vandal Resistance	GV-120D / GV-121D	IK10+
	GV-122D / GV-123D	IK7
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Language		Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese* Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later.
Applications
Network Storage		GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
Mobile Phone Support		GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone.
Live Viewing		IE , GV-MultiView
CMS Server support		GV-Center V2, GV-VSM, GV-Control Center
