> Item #543

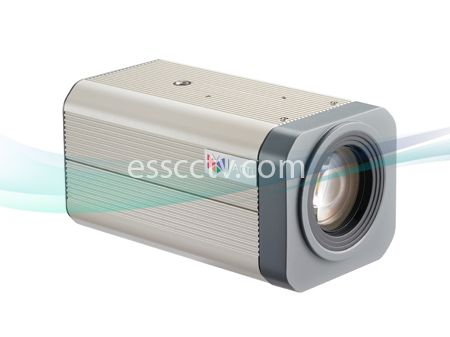

ACTi 2 Megapixel Network IP Indoor Box Camera: 35x Zoom Lens, HD 1080p, 2 way Audio, PoE, H.264 Dual Stream

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for ACTi 2 Megapixel Network IP Indoor Box Camera: 35x Zoom Lens, HD 1080p, 2 way Audio, PoE, H.264 Dual Stream: AC-KCM-5311

Additional Image for ACTi 2 Megapixel Network IP Indoor Box Camera: 35x Zoom Lens, HD 1080p, 2 way Audio, PoE, H.264 Dual Stream: Indication

Additional Image for ACTi 2 Megapixel Network IP Indoor Box Camera: 35x Zoom Lens, HD 1080p, 2 way Audio, PoE, H.264 Dual Stream: Drawing

Model: AC-KCM-5311
Item #: 543
Manufacturer: ACTi

MSRP: $750.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please add to cart for your special sale price!

This Model is now discontinued.

If you specifically need this model, please contact us for availability

1/4" Progressive Scan CMOS

True Day and night function with mechanical IR cut filter (ICR)

Minimum illumination 0.05 lux at F1.65

35 x optical zoom

Zoom Lens: Built-in f3.5-122.5 mm / F1.65 Megapixel DC iris

15 fps at 1920 x 1080 resolution (1080p, 956 TV lines)

Selectable H.264, MPEG-4 SP, MJPEG compressions with dual streaming

Two-way audio

Digital input and digital output

Video Motion Detection

MicroSD/ MicroSDHC card slot for local storage

Device
Device Type	Box Camera
Image Sensor	Progressive Scan CMOS
Sensor Size	1/4" (3.84 x 2.4 mm)
Horizontal Resolution	956 TVL
Day / Night	Yes
Minimum Illumination	Color: 0.1 lux at F1.65 (30 IRE, 2400°K); B/W: 0.05 lux at F1.65 (30 IRE, 2400°K)
Color to B/W switch	ISP based switch, configurable
Mechanical IR Cut Filter	Yes
IR Sensitivity Range	700 - 1100 nm
IR LED	No
Electronic Shutter	1/25 - 1/2000 sec (50Hz); 1/15 - 1/2000 sec (60Hz) (manual mode) 1 - 1/2000 sec (auto mode)
Lens
Focal Length / Aperture	Zoom, f3.5 - 122.5 mm / F1.65 - 4.5
Zoom Ratio	35x Optical
Zoom Speed	4 sec (1x to 35x)
Iris	DC iris
Focus	Auto focus
Horizontal Viewing Angle	45.35° - 1.6°
Video
Compression	H.264, MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution (H.264, MJPEG)	15 fps at 1920 X 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
Maximum Frame Rate vs. Resolution (MPEG-4 SP)	10 fps at 1920 X 1080 (HD 1080p); 24 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
Multi-Streaming	Simultaneous dual streams based on two configurations
Bit Rate	28 Kbps - 6 Mbps (per stream)
Bit Rate Mode	Constant, Variable
S/N Ratio	More than 66 dB
Image Enhancement	SDR (Superior Dynamic Range); White balance: automatic, hold and manual; Brightness; Contrast; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging
Privacy Mask	4 configurable region
Text Overlay	User defined text on video
Image Orientation	Image flip and mirror
Audio
Compression	8 kHz, Mono, PCM, 16 bit encoding
Audio-In	3.5mm Phone Jack
Audio-Out	3.5mm Phone Jack
Network
Protocol & Service	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D
Ethernet Port	1, Ethernet (10/100 Base-T), RJ-45 connector
Security	IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control
Alarm
Alarm Trigger	Video motion detection (3 regions); External device through digital input
Alarm Response	Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output
Interface
Digital Input	2, terminal block
Digital Output	2, terminal block
Serial Port	RS-485, RS-422, terminal block
Local Storage	MicroSD/ MicroSDHC memory card slot (card not included)
General
Power Source / Consumption	PoE Class 3 (IEEE802.3af) / 6.6W DC 12V / 8.64W (adapter not included)
Weight	680 g (1.50 lb)
Dimensions (W x H x D)	76 mm x 71.4 mm x 138.7 mm (2.99" x 2.81" x 5.46")
Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity	10% ~ 85% RH
Approvals	Camera: CE, FCC
Integration
Unified Solution	Fully compatible with ACTi software
ISV Integration	Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser	Microsoft Internet Explorer 6.0 or newer
