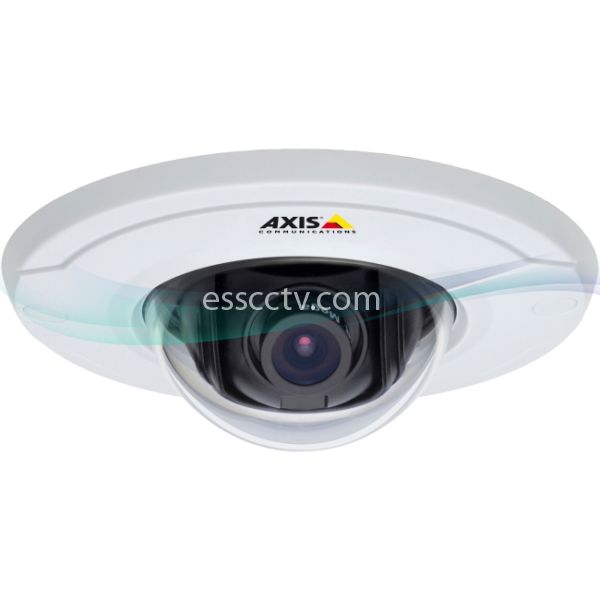

AXIS M3014 Fixed Dome Network Camera is an ultra-compact fixed dome with an innovative and unique camera design. It is specifically developed for recessed mounting in drop ceilings, creating an unmatched discreet solution for network video surveillance – measuring 9 cm (3.6”) in diameter and barely sticking out 3 cm (1.1”) from the ceiling.
AXIS M3014 is a 1 megapixel network camera using progressive scan technology. The camera offers multiple streams that can be individually optimized in H.264 as well as Motion JPEG. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.
* For network cameras such as PTZ (pan/tilt/zoom) and PTZ dome cameras that require higher power than what PoE products can provide, High PoE midspans and splitters are required.
| Image sensor | AXIS M3014: 1/4” Progressive scan RGB CMOS 1 Megapixel |
| Lens | AXIS M3014: 2.8 mm, F2.0, fixed iris Horizontal angle of view: 80° |
| Minimum Illumination | 1 lux, F2.0 |
| Shutter time | AXIS M3014: 1/25000 s to 1/6 s |
| Pan/Tilt/Zoom | AXIS M3014: Digital PTZ, preset positions, guard tour |
| Video Compression | AXIS M3014: H.264 (MPEG-4 Part 10/AVC), Motion JPEG |
| Resolutions | AXIS M3014: 1280x800 to 160x90 |
| Frame Rate H.264 | 30 fps in all resolutions |
| Video Streaming | AXIS M3014: Multi-stream H.264 and Motion JPEG H.264/Motion JPEG: 1 stream in full frame rate and resolution in either compression, more streams if identical or limited in frame rate/resolution VBR/CBR H.264 |
| Image Settings | AXIS M3014: Mirroring of Images |
| Security | Password protection, IP address filtering, HTTPS* encryption, digest authentication, user access log |
| Operating conditions | AXIS M3014: 0 ºC – 45 ºC (32 ºF – 113 ºF) Humidity 20 - 80% RH (non-condensing) |
| Included Accessories | AXIS PoE Midspan 1-port, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license |
