> Item #539

CNB IP Hybrid Network Camera: 1.3 Megapixel Image, Progressive CMOS, PoE and SD Card Support

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for CNB IP Hybrid Network Camera: 1.3 Megapixel Image, Progressive CMOS, PoE and SD Card Support: IGP-1030

Additional Image for CNB IP Hybrid Network Camera: 1.3 Megapixel Image, Progressive CMOS, PoE and SD Card Support: Back Panel

Additional Image for CNB IP Hybrid Network Camera: 1.3 Megapixel Image, Progressive CMOS, PoE and SD Card Support: Drawing

Model: IGP-1030
Item #: 539
Manufacturer: CNB Technology

MSRP: $464.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please add to cart for your special sale price!

This Model has been discontinued.
Please follow the link for our recommended replacement: GV-EBX1100

Hybrid IP Mega-pixel Box Camera

Composite Video: Select NTSC/PAL 1.0Vp-p (BNC type - 75Ω)

1/2 inch Progressive CMOS sensor

Max. 1280(H) x 960(V) 1.3M pixel

1.3 M Mega-pixel Resolution up to 24 frames/sec

Support Two-way Audio (Full duplex)

Support Local storage by SD memory card (upto 4GB)

Ethernet 10/100 Base-T

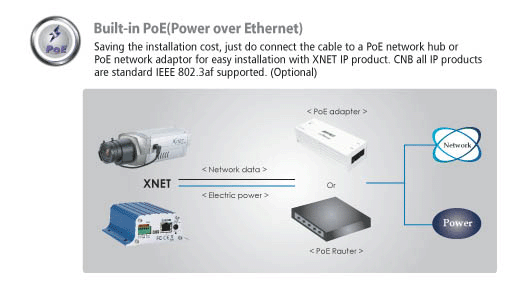

Support PoE (Power over Ethernet)

ONVIF

Lens NOT included: Megapixel Lens required for Megapixel image quality

Camera
Signal System	Progressive image processing
Scaning System	4:3 Progressive
Image Sensor	1/2 inch Progerssive CMOS Sensor
Sync. System	Internal
Effective Pixels Number	1280(H) x 960(V) 1.3 Mega
Horizontal Resolution	800 TV Lines
Video Output Level	Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)* VGA/QVGA Mode Only
Lens Mount	CS Mount, DV Iris (Recommend Lens)
Min. Illumination	1 Lux(DSS On)
Digital Pan/Tilt	Image Cropping Function
Back Light Compensation	On/Off
Flickerless	On/Off
White Balance	Auto/Manual
Exposure	Auto/Manual
Function	B/W
Elec. Shutter Speed	NTSC : 1/6 ~ 1/600 (13 Step)PAL : 1/6 ~ 1/500 (13 Step)
System
Main Processor	32bit Embedded CPU with Linux
System Memory	NAND Flash Memory : 64MByte, 128MB DDR MemorySD Card : Support for Max 4GByte Size
Video / Audio
Compression	SXGA / XGA : MJPEGVGA : MJPEG / MPEG4 / H.264
Frame Rate	SXGA, XGA : MJPEG (Max. 24fps)VGA : MJPEG / MPEG4 / H.264 (24fps)
Resolution	SXGA (1280 x 960), XGA (1024 x 768)VGA (640 x 480), QVGA (320 x 240)
Video Streaming	SXGA / XGA : MJPEG Single modeVGA : Dual Capable
Video Streaming	Constant and variable bit rate in MPEG4 (128kbps ~ 3M bps)Controllable frame rate and bandwidth
Image Setting	Compression level settingConfigurable Brightness, Sharpness, White Balance
Audio	Two-way (full duplex / ADPCM G.726)
Network
Protocol	IPv4, HTTP, TCP, RTSP, RTP, RTCP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, ARP, DNS, DynDNS
Supported DDNS	1.CNB DDNS 2.DynDNS.org 3.Reference code with SDK
Video Access from Web browser	Camera live viewer for up to 10 clients
Suppot PoE	Standard IEEE 802.3af supported (Option)
Security
Access Level Setup	Multiple user access levels with password protection
Network Security	IP Filtering
Alarm and Event Managerment
Image Detection	Motion detection (Select 3 Regions - each area)
Sensor Detection	Sensor In, Scheduling, Alarm out
After Event Process	JPEG Image upload over FTP server / SMTP (E-mail server)
Local Storage	JPEG Image write to Internal & SD card memory- Internal memory : Max 32MByte- SD memory : Support size Max 4GByte
Pre/Post Alarm	Detail time-set : Max Pre alarm 5 sec / Post alarm 8 secLocal storage (Internal memory or SD card memory : JPEG image)
Applications
Browser	Internet Explorer 6.0 or higher
Monitoring Application	Web Viewer (Window Web Browser Base)Live view for up to 10 user clientsVideo Snapshot & recording to file (JPEG file)XNVR Viewer and Utility (IP-Installer, etc)
System Control	CNB Camera Management tool on CD and web-based configuration
Maintenance
System Upgrade	Firmware upgrade over HTTP
PTZ control (RS-485)	PTZ Protocol Service (User define update)
Mechanical
Operating Temperature	0℃ ~ 40℃
Power	DC 12V Max. 5 W
