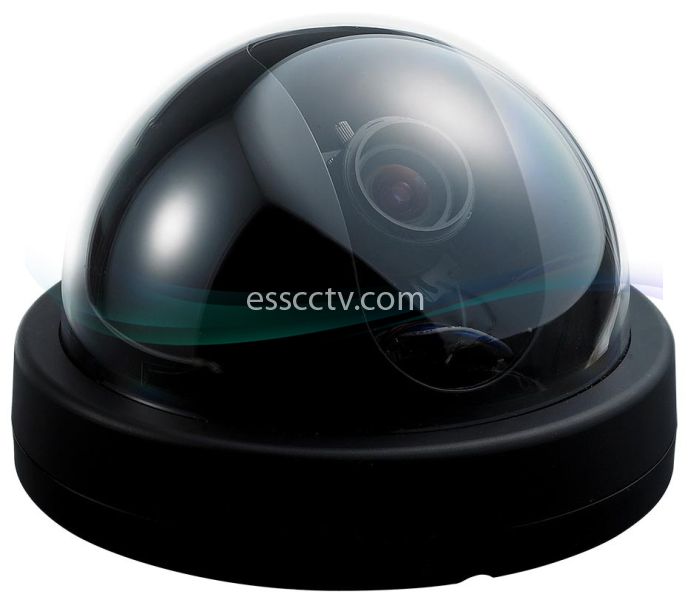

Eyemax Super-Dome Color Camera 650 TVL Hero DSP 2.8~12mm D-WDR DUAL power
Images are for illustration purpose and may not show the actual product.
Model:
DO 614V
Item #: 507
Manufacturer: Eyemax
MSRP:
$155.00
Our Price:
$99.00
(You save: $56.00)
- 1/3” Sony Super HAD II CCD
- 2.8~12mm Auto Iris Vari-focal Lens
- Single-Scan WDR (Wide Dynamic Range)
- 650 TVL : Razor sharp high resolution
- OSD - On Screen Display - Easy camera setup
- 3-Axis Design : Able to change angle.
- Easy Flip Open Cover
- Dual Power : 12VDC / 24VAC
OSD CAMERA SETUP
It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.
3-AXIS DOME CONSTRUCTION
Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need
| 650 TV Lines |
| 1/3 inch SONY Super HAD II CCD |
| 811(H) × 508(V) 410K pixels |
| 768(H) × 494(V) 380K pixels |
| 2:1 Interlace |
| More than 50dB (AGC off) |
| Horizontal : 15.734KHz / Vertical : 59.94Hz |
| CVBS : 1.0Vp-p / 75ohm |
| 0.3 Lux at F1.2 (Color) / 0.002 Lux(sens-up x256) |
| ATW / AWC / PUSH / Manual |
| Auto / Manual (1/60 sec ~ 1/100,000 sec) |
| Built-in |
| Low / Middle / High / HLM / Off Selectable |
| Low / Middle / High / Off Selectable |
| Low / Middle / High / Off Selectable |
| On / Off |
| x2 ~ x256 / Off |
| Auto / Color / BW / CDS |
| ON / OFF |
| ON / OFF (6 Zone) |
| Mirror / V-flip / Rotate/ Off |
| Internal / Auto |
| -10°C~+60°C(14°F ~ 140°F) / 30~80% RH |
| -20°C~+80°C(-4°F ~ 176°F) / 20~90% RH |
| 24VAC OR 12VDC |
