> Item #481

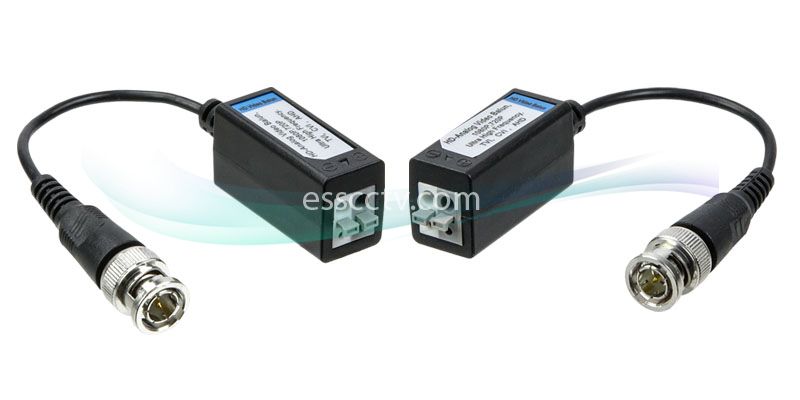

Analog HD hybrid passive balun, works with HD-TVI, HD-CVI, AHD, and analog cameras. Pair of 2

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: AP-MBS-31C
Item #: 481

MSRP: ~~$10.00~~
Our Price:

$6.00

(You save: $4.00)

PROPERTIES
Transmission Signal	1 Channel
Transmission Distance	720P: 250m (max) 1080P: 200m (max)
Category Type	UTP CAT5/5E/6
VIDEO TRANSMISSION PROPERTIES & PORT
Coaxial Video Connector	BNC-M
Twisted-Pair Video Connector	Push-Terminal
Compatible Format	HDTVI, HDCVI, AHD, 960H, 720P
Resolution	720p/1080p
Anti-Interference	>60db
PROTECTION
ESD	1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2
Coaxial cable connector	2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector	2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
IMPEDANCE
BNC Male	75 ohms
UTP Cable	100 ohms
PHYSICAL PROPERTIES
Shell	ABS
Color	Black
N.W.	25g
STABILITY
MTBF	>10000H
ENVIRONMENTAL
Operating Temperature	-10~55°C
Storage Temperature	-20~75°C
Humidity	0~95% (non-condensing)
