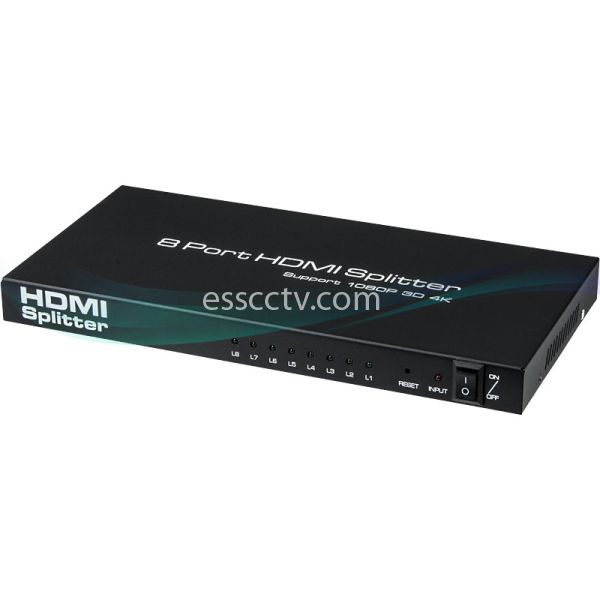

HDMI 1 in 8 out Splitter, Support 4K 2K Full HD, Remote, Power Adpater INCLUDED
Model:
HA SPL018
Item #: 462
MSRP:
$270.00
Our Price:
$139.00
(You save: $131.00)
KEY FEATURES
- HDMI Splitter 1x8
- One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
- Support Full HD, Full 3D
- Support 4K × 2K resolution
- Support CEC
- Support deep color 30bit, 36bit, 48bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 /DSD/HD(HBR)
- Support signal retiming
- Support input up to 15 meters AWG26 HDMI standard cable length, output up to 20 meters AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC12V/3A power supply
| HDMI 1.4a |
| HDMI Resolution |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support Video Color Format |
24bit/deep color 30bit,36bit, 48bit |
| Support Audio Format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) |
| Max Bandwidth |
340MHz |
| Max Baud Rate |
10.2Gbps |
| Input/Output TMDS Signal |
0.5~1.5Volts p-p(TTL) |
| Input/Output DDc Signal |
5Volts p-p (TTL) |
| Input cable distance |
≤15m HDMI AWG26 |
| Output Cable Distance |
≤20m AWG26 HDMI standard cable |
| Max Working Current |
2A |
| Power Adapter Format Input |
AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A |
| Operating Temperature Range |
-15 to +55°F |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Dimension (L × W × H) |
280×138×25(mm) |
| Weight |
871g |
