> Item #440

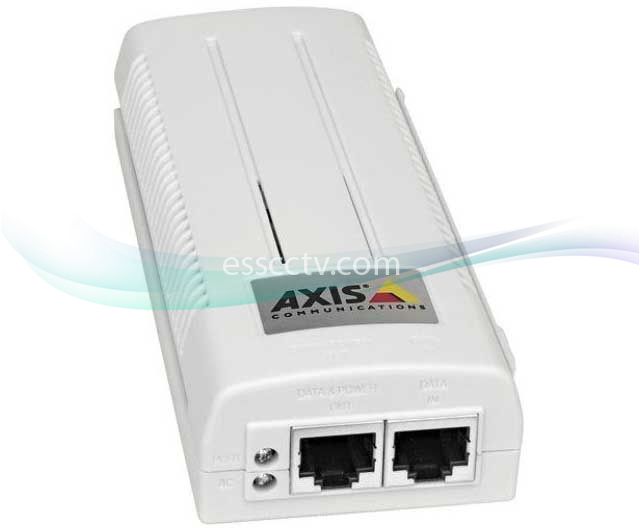

AXIS Commnuications Power over Ethernet midspan 1 port, compatible with IP cameras with PoE support

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for AXIS Commnuications Power over Ethernet midspan 1 port, compatible with IP cameras with PoE support: AXC-0226-004

Additional Image for AXIS Commnuications Power over Ethernet midspan 1 port, compatible with IP cameras with PoE support: Diagram

Model: AXC-0226-004
Item #: 440
Manufacturer: Axis Communications

MSRP: ~~$99.00~~
Our Price:

$79.00

(You save: $20.00)

PoE midspan 1 port

output port 1 x RJ-45 10/100Base-TX

input power 110 - 220 V AC

output power 48V DC (max 15.5 Watt)

recommended distance upto 300 Ft - The PoE is not a repeater and does not amplify the Ethernet data signal

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to

network video products without the need to install power outlets and electrical cabling. Simply

connect the Axis PoE midspans and PoE splitters to the network, and the network video products are supplied with power.

Easier and faster installations

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.

No need for power outlets

With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.

Axis PoE midspans and PoE splitters

Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in Power over Ethernet support.

For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.

Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.

* For network cameras such as PTZ (pan/tilt/zoom) and PTZ dome cameras that require higher power than what PoE products can provide, High PoE midspans and splitters are required.

Data rate	10/100 Mbps
Connectors	Shielded RJ–45, EIA 568A and 568B
Network cables	Shielded category 5 (or higher) Ethernet
Wiring	Mode B; data provided over pairs 1/2 and 3/6, power over spare pairs 4/5 (+) and 7/8 (-)
Output power	48 V DC (max. 15.4 W/port)
Input power	AC input voltage: 90 - 264 V AC AC frequency: 47 - 63 Hz AC input current: 0.5 A at 110 - 220 V AC
Installation and management	Plug-and-play installation; midspans automatically detect all devices with support for PoE and supply inline power Local LED management display
Port auto-sensing	Standard IEEE 802.3af auto-sensing Pre-standard backward compatibility algorithm (1-port midspan only)
Compliance	IEEE 802.3 standard (when no inline power is supplied) and IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)
Mounting	Wall or shelf mounting
Approvals	FCC Part 15 Class B with FTP cabling EN55022 (CISPR 22) Class B with FTP cabling Safety: cUL/UL, TUV, CE
Operating conditions	0 - 40 °C (32 - 104 °F) Humidity max. 90% RH (non-condensing)
Dimensions (HxWxD) and weight	31 x 60 x 145 mm (1.22” x 2.36” x 5.71”) 450 g (1 lb.)
