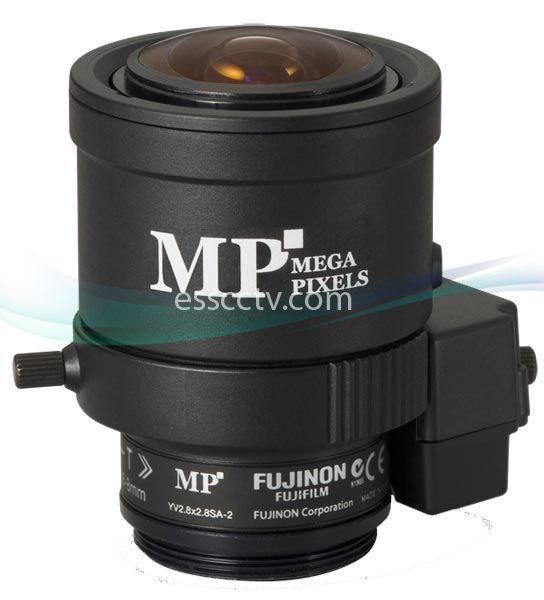

FUJINON Megapixel Lens - YV2.8x2.8SA-SA2: 2.8~8mm WIDE, 3 MP support, Auto-Iris, Built-In ND Filter
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
LA MPFU2808AS
Item #: 426
Manufacturer: Fujinon
MSRP:
$159.00
Our Price:
$75.00
(You save: $84.00)
- Manufacturer Part Number: YV2.8x2.8SA-SA2
- 2.8~8mm Vari-Focal Adjustable Lens
- Wide Angle upto 100 degrees
- Megapixel Lens supporting 3 MP
- CS mount
- Built-in ND filter
- DC Auto Iris
- Metal Mount
- Aspherical Lens
- F1.3 Wide Aperture Rate
High image-quality monitoring with optical performance supporting 3 megapixels. WIDE 2.8mm, achieving a horizontal field angle of 100 degrees (when used on 1/3 cameras). Compact and lightweight design, best suited for use with dome cameras. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
ND Filter
ND filter allows greater flexibility to change the aperture, exposure time and/or motion blur of subject in different situations and atmospheric conditions.
| CS |
| 2.8 mm - 8 mm (2.8x) |
| Manual |
| F1.3 - T360 (Equivalent to F360) |
| Auto (DC Type) (*1) |
| Manual |
| 7.70 mm |
| 314 mm |
| 744 mm × 468 mm |
| 197 mm × 146 mm |
| 468 mm × 323 mm |
| 146 mm × 108 mm |
| 890 mm × 359 mm |
| 216 mm × 118 mm |
| 530 mm × 256 mm |
| 159 mm × 88 mm |
| 100°00′ × 73°45′ |
| 35°03′ × 26°18′ |
| 73°45′ × 54°49′ |
| 26°18′ × 19°44′ |
| 109°50′ × 59°51′ |
| 38°11′ × 21°29′ |
| 80°39′ × 44°38′ |
| 28°39′ × 16°07′ |
| ∞ - 0.3 m |
| - |
| 50 g |
| 190 Ω |
| 500 Ω |
| 23 mA (Max.) at DC 4V |
|
