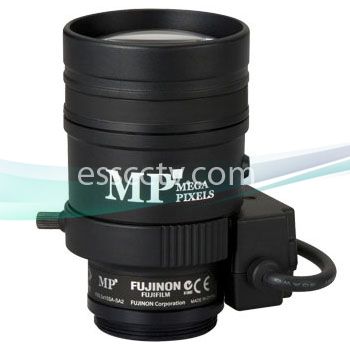

FUJINON Megapixel Lens - YV3.3x15SA-SA2: 15~50mm 3.3x Zoom, 3 MP support, Auto-Iris, Built-In ND Filter
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
LA MPFU1550AS
Item #: 385
Manufacturer: Fujinon
MSRP:
$219.00
Our Price:
$134.00
(You save: $85.00)
- Manufacturer Part Number: YV3.3x15SA-SA2
- 15~15mm Vari-Focal Adjustable Lens
- 3.3x Zoom capable
- Megapixel Lens supporting 3 MP
- CS mount
- Built-in ND filter
- DC Auto Iris
- Metal Mount
- Aspherical Lens
- F1.5 Wide Aperture Rate
- RoHS Compliant
High image-quality monitoring with optical performance supporting 3 megapixels. f15-50mm, 3.3x zooming application compatible lens. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
ND Filter
ND filter allows greater flexibility to change the aperture, exposure time and/or motion blur of subject in different situations and atmospheric conditions.
| CS |
| 15 mm - 50 mm (3.3x) |
| Manual |
| F1.5 - T360 (Equivalent to F360) |
| Auto (DC Type) (*1) |
| Manual |
| 7.70 mm |
| -36 mm |
| 271 mm × 202 mm |
| 87 mm × 66 mm |
| 202 mm × 151 mm |
| 66 mm × 49 mm |
| 296 mm × 165 mm |
| 95 mm × 54 mm |
| 220 mm × 123 mm |
| 72 mm × 40 mm |
| 18°08′ × 13°34′ |
| 5°35′ × 4°12′ |
| 13°34′ × 10°10′ |
| 4°12′ × 3°10′ |
| 19°46′ × 11°40′ |
| 6°04′ × 3°26′ |
| 14°47′ × 8°18′ |
| 4°34′ × 2°35′ |
| ∞ - 0.8 m |
| - |
| 60 g |
| 190 Ω |
| 500 Ω |
| 23 mA (Max.) at DC 4V |
|
