GeoVision H.264 Hardware Compression 16ch DVR Card, 480 FPS @ D1, 8.5 Software

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

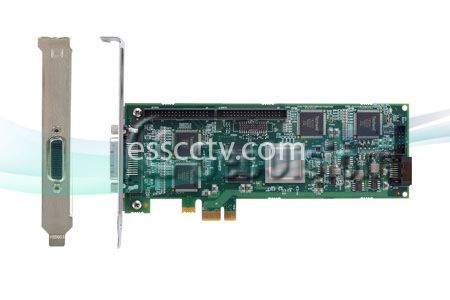

Additional Image for GeoVision H.264 Hardware Compression 16ch DVR Card, 480 FPS @ D1, 8.5 Software: GV-5016

Additional Image for GeoVision H.264 Hardware Compression 16ch DVR Card, 480 FPS @ D1, 8.5 Software: Retail Box

Additional Image for GeoVision H.264 Hardware Compression 16ch DVR Card, 480 FPS @ D1, 8.5 Software: Software DVD

Model: GV-5016
Item #: 36
Manufacturer: GeoVision

MSRP: ~~$1,940.00~~
Our Price:

$1,278.00

(You save: $662.00)

DVR Card Manufacturer : GeoVision

Camera Inputs: 16 Video inputs (16 audio inputs)

Display/Record Frame Rate: Hardware Compression Card - 480/480 @ D1

Video Input Type: LFH (cable included)

Video Output: No TV out

Video Format: NTSC, PAL

Video Compression: Geo MPEG4, Geo H264

Recording Mode: Continuous / Motion / Schedule

Card Interface: PCI-Express

Internet: Multiple simultaneous logins supported.

Instruction Manual: Included

Power Search: Advanced Search Functionality Provided

Software Version: GeoVision Software Version 8.5 or latest version upon release

Packaging: New in Retail Box

3 Year Warranty

Supports 64 bit Windows 7

The GV-5016 Card provides up to 16 video and 16 audio channels, recording up to 480 fps (NTSC) in total with H.264 hardware compression. The new technology of resolution is employed to enhance the live image without DSP Overlay. Even in multi views, the image on the largest division view can remain at the high-quality resolution without DSP Overlay.

Model			GV-5016	GV-5016 x 2
Interface			PCI-E (x1)	PCI-E (x1) x 2
Input Type			LFH
Video Input			16 Cams	32 Cams
Audio Input			16 Channels	32 Channels
Recording Rate (D1)	NTSC		480 fps	960 fps
	PAL		400 fps	800 fps
Display Rate	NTSC		480 fps	960 fps
	PAL		400 fps	800 fps
Video Resolution	NTSC	H/W	704 x 480	704 x 480
		S/W	352 x 240	352 x 240
	PAL	H/W	704 x 576	704 x 576
		S/W	352 x 288	352 x 288
Video Compression Format	S/W		Geo MPEG4, Geo H264
	H/W		H264
Audio Compression Format			AAC (16 kHz / 16 bit)
Bit Rate Range			5M ~ 10M
GV-Multi Quad Card Support			No
GV-Loop Through Card Support			No
GV-NET/IO Card Support			Yes (Note 3)
Dimensions (W x H)			168 x 70 mm / 6.61 x 2.75 in
Installation Guide			GV-5016
Note: 1. GV-5016 does not support the TV-Out function. 2. GV-5016 is currently not compatible with VIA series and ATI series chipset motherboards. 3. To work together with GV-5016, GV-NET/IO Card V3.1 must be set in the I/O Box Mode and connected to the PC through USB or DB9. 4. Specifications are subject to change without notice.
Minimum System Requirements For One Card
OS Supported	32-bit		Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit		Windows 7 / Windows Server 2008 R2
CPU			Core 2 Quad, 2.4 GHz
RAM			2 x 1 GB Dual Channels
HDD			500 GB
Graphic Card			AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectX			9.0c
Minimum System Requirements For Two Cards
OS Supported	32-bit		Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit		Windows 7 / Windows Server 2008 R2
CPU			Core i5 650, 3.20 GHz
RAM			2 x 1 GB Dual Channels
HDD			1 TB
Graphic Card			AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectX			9.0c
