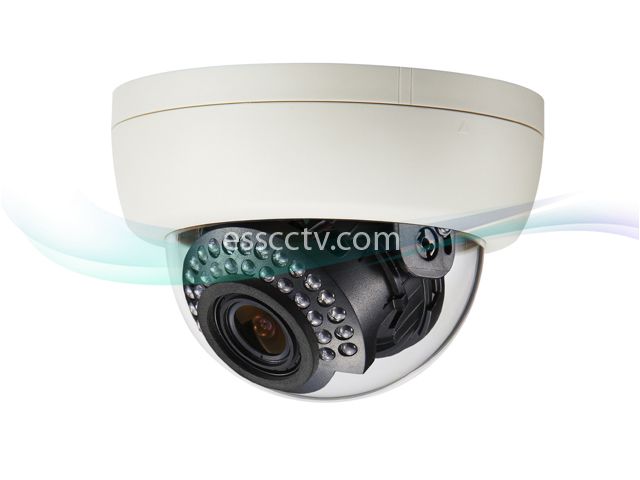

KT&C KPC-DNN100NHB Indoor IR Dome Camera 550 TVL, 3.6mm Fixed Lens, 30 IR LED 100FT, 12V DC
KT&C USA
KT&C KPC-DNN100NHB Indoor IR Dome Camera 550 TVL, 3.6mm Fixed Lens, 30 IR LED 100FT, 12V DC
Images are for illustration purpose and may not show the actual product.
Model: KPC-DNN100NHB
Item #: 336
Manufacturer: KT&C USA
MSRP: $150.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Color:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-DI28V12IRN
  • 1/3" Sony Super HAD CCD â…¡
  • High Resolution of 550 TVL
  • High Performance 30 units IR LEDs
  • Max. 30M Long Distances Visibility at Night
  • True Day & Night with ICR Mechanism
  • DC Iris Vari-Focal Lens
  • Second Video Connector
  • 3-Axis Gimbal Bracket
  • Pan& Tilt (Pan 360Ëš / Tilt 140Ëš)
  • DC12V

 SPECIFICATION



Model Name
KPC-DNQ100 KPC-DNN100
Image Device 1/3" Sony Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TVL
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off) More than 48dB (AGC Off)
Min. Illumination 0.05 Lux / Faceplate
Sync. System Internal
Gamma γ = 0.45 γ = 0.05 ~ 1.0 Adjustable
Video Output 1.0 Vp-p Composite (75Ω)
Lens Vari-Focal
Electronic Shutter NTSC : 1/60 sec  /  PAL : 1/50 sec
BLC None On/Off (Area & Radio Adjustable)
AGC Low / High On / Off (Adjustable)
Day & Night Ture Day & Night With ICR Mechanism
Privacy Masking None Zone 4 EA (Mask On / Off)
White Balance ATW / PUSH ATW / AWB / MANUAL / FIXED
OSD None Built-in
Language None English / Chinese / Japanese / Korean
IR LED 850nm, 30ea, up to 30m
IR LED Operation On (1 Lux) / Off (3 Lux)
Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Comsumption DC12V DC12V (±10%), Max. 550mA
DC12V/AC24V

AC24V (±10%), Max. 6.8W / DC12V (±10%), Max. 650mA

Dimensions (mm)

Bubble (100Φ), 136.4Φ X 95.3mm

Weight Approx. 343 g



 LENS OPTIONS



Type

Aspheric Vari-Focal DC IRIS Lens (ICR)

Focal Length 9.0 ~ 22.0 2.6 ~ 11.0
Aperture F1.6 ~ 360 F1.2 ~ 360
Angle of View

40.6Ëš ~ 16.2Ëš

133.14Ëš ~ 34.55Ëš



 DIMENSIONS

 3-AXIS ROTATING MECHANISM
