KT&C Color Day & Night Indoor IR Aluminum Dome Camera - 550 TVL, 12 IR, 50FT, DC 12V
KT&C USA

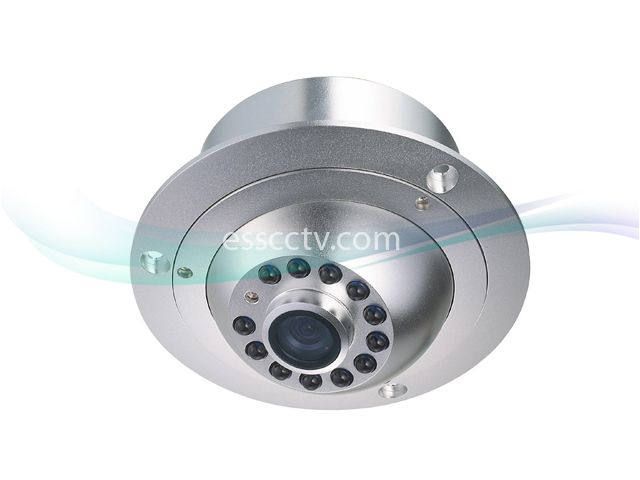

KT&C Color Day & Night Indoor IR Aluminum Dome Camera - 550 TVL, 12 IR, 50FT, DC 12V
Images are for illustration purpose and may not show the actual product.
Model: KPC-D950NHB
Item #: 330
Manufacturer: KT&C USA
MSRP: $162.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Mount:
Power Supply:

  • The item has been discontinued.
    Please contact us for our recommended replacement.

  • 1/3" Sony Super HAD CCD
  • High Resolution of 550 TVL
  • Fixed Iris IR Corrective Board Lens
  • Min. Illumination of 0Lux (IR LED On)
  • High Performance 12 units IR LEDs
  • Max. 15M Long Distances Visibility at Night
  • Die-Casting Aluminum Dome Housing
  • Pan&Tilt (Pan 360Ëš / Tilt 70Ëš)
  • IR Reflection Free (IRF)

 SPECIFICATION



Model Name
KPC-D950N
KPC-D950H
Image Device 1/3" SONY Super HAD CCD 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 KHz(V)
PAL : 15.625 KHz(H), 50 KHz(V)
H. Resolution 380 TV Lines 550 TV Lines
Total Pixels NTSC : 537(H) x 505(V) NTSC : 811(H) x 508(V)
PAL : 537(H) x 597(V) PAL : 795(H) x 596(V)
Effective Pixels NTSC : 510(H) x 482(V) NTSC : 768(H) x 494(V)
PAL : 500(H) x 582(V) PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 0 Lux ( IR LED On)
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Fixed IR Board Lens
Electronic Shutter NTSC : 1/60~1/100,000 sec  /  PAL : 1/50~1/100,000 sec
Day & Night Digital Day & Night
IR LED 850nm, 12ea, up to 15m
IR LED Operation

Typical 15 Lux IR LED On

(Min : 10 Lux, Max : 30 Lux)

On (1 Lux) / Off (3 Lux)
Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 250mA DC12V (±10%), Max. 230mA
Dimensions (mm) 95Φ X 64.5mm
Weight Approx. 313g



 LENS OPTIONS



Type

IR Board Lens
Normal Board Lens
Focal Length 3.7 4.0 6.0 2.97 3.6 6.0 8.0
Aperture F2.0 F2.0 F2.5 F2.0 F2.0 F2.0 F2.0
Angle of View

95.3Ëš

86.1Ëš

50.6Ëš

130Ëš

92Ëš

53Ëš

40Ëš
