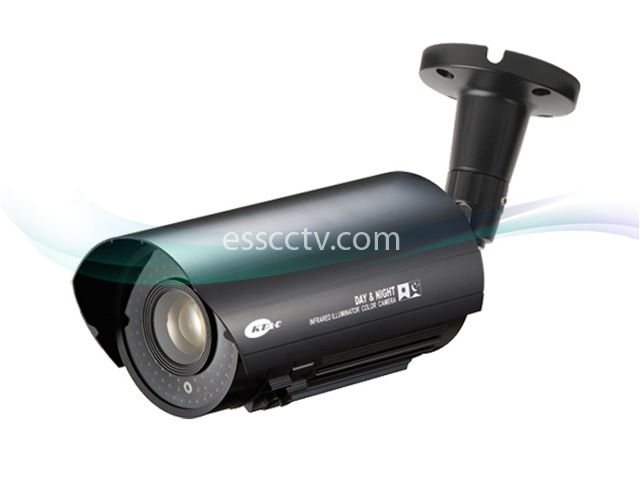

KT&C Color IR Bullet Camera 700 TVL, 5~50mm Long Range, 100 LED 200 FT, Heater, EFFIO 2D-DNR, ATR, D-WDR

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for KT&C Color IR Bullet Camera 700 TVL, 5~50mm Long Range, 100 LED 200 FT, Heater, EFFIO 2D-DNR, ATR, D-WDR: KPC-N851NUF

Additional Image for KT&C Color IR Bullet Camera 700 TVL, 5~50mm Long Range, 100 LED 200 FT, Heater, EFFIO 2D-DNR, ATR, D-WDR: Diagram

Model: KPC-N851NUF
Item #: 321
Manufacturer: KT&C USA

MSRP: $556.00
Our Price:

Why can't I see the price?

ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:

are registered and logged in to your account.
add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login

Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers

The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!

This Model has been replaced to a new model.
Please follow the link: KPC-N751NU

1/3" 960H SONY EXview HAD CCD ll

Ultra-High Resolution of 700 TVL

Min. Illumination of 0 Lux (IR LED On)

True Day & Night with ICR Mechanism

2DNR, ATR (Adaptive Tone-curve Reproduction / Digital WDR)

Privacy Masking / Motion Detection / Multi-Language OSD

Varifocal Auto IRIS Lens / External Zoom & Focus Adjustable

100 units IR LED with Max. 70m

Dual Window Structure (DWS) / Cable Concealed Bracket, Service Video Connector

Outstanding Durability with IP65

24V AC power

LENS OPTIONS

Lens	Aspheric Varifocal DC IRIS Lens (ICR)
Focal Length	5.0 ~ 50
Aperture	F1.4 ~ 360

Image Device	1/3" 960H SONY EXview HAD CCD ll
Scanning System	2 : 1 Interlace
Scanning Frequency	NTSC: 15.734 KHz(H), 59.94 Hz(V) / PAL: 15.625 KHz(H), 50 Hz(V)
H. Resolution	700 TVL
Total Pixels	NTSC: 1020(H) x 508(V) / PAL: 1020(H) x 596(V)
Effective Pixels	NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V)
S/N Ratio	More than 50dB (AGC Off)
Min. Illumination	0 Lux (IR LED On)
Sync. System	Internal
Gamma	r = 0.45
Video Output	1.0 Vp-p Composite (75Ω)
Lens	Varifocal Auto IRIS & DN Lens Built-in
Electronic Shutter	NTSC: 1/60 sec / PAL: 1/50 sec
BLC	OFF / BLC / HLC
White Balance	ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR	On / Off (Level Adjustable)
ATR	On / Off (Level Adjustable)
Function	MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Motion Detection	Zone 4ea
Privacy Masking	Zone 4ea
Language	English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
Day & Night	True Day & Night with ICR Mechanism
OSD	Built-in
IR LED	850 nm, 100 ea, up to 70 m
IR LED Operation	On (1 Lux), Off (3 Lux)
IP Rating	IP65 (Weather Proof)
Operating Temperature	14˚F ~ 122˚F (-10˚C~ + 50˚C)
Storage Temperature	-4˚F ~ 140˚F (-20˚C~ + 60˚C)
Power Consumption	AC24V ±10% Max. 17 W
Dimensions (mm)	115.2Φ x 164.5
Weight	Approx. 1.8 kg
Options	Heater, AC24V Voltage
