KT&C Color IR Bullet Camera - 380 TVL, 20 LED 60 FT, 12V DC
KT&C USA

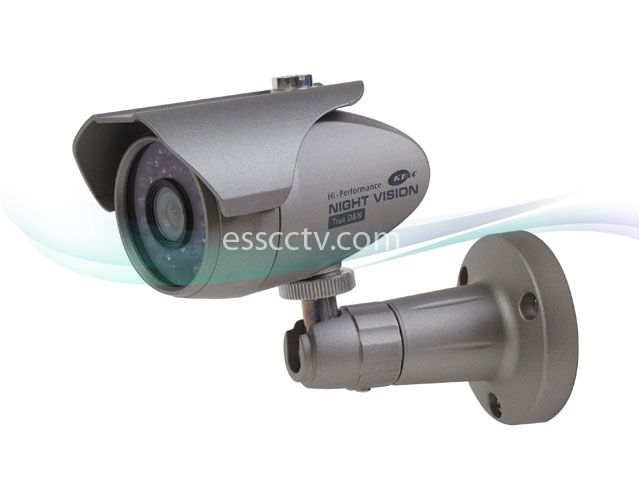

KT&C Color IR Bullet Camera - 380 TVL, 20 LED 60 FT, 12V DC
Images are for illustration purpose and may not show the actual product.
Additional Images:
Additional Image for KT&C Color IR Bullet Camera - 380 TVL, 20 LED 60 FT, 12V DC: KPC-N300NNS Additional Image for KT&C Color IR Bullet Camera - 380 TVL, 20 LED 60 FT, 12V DC: Black Body
Model: KPC-N300NNS
Item #: 315
Manufacturer: KT&C USA
MSRP: $170.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-NSP302NU
  • 1/3" SONY Super HAD CCD
  • High Resolution of 380 TVL
  • 20 units IR LED with Max. 20m
  • Fixed IRIS IR Corrective Board Lens
  • Digital Day & Night
  • IR Reflection Free with Special Front Glass
  • Outstanding Durability with IP67

 OPTIONAL COLOR

 STANDARD STANDING BRACKET











 SPECIFICATION



Model Name
KPC-N300N
KPC-N300H
Image Device 1/3" SONY Super HAD CCD 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 380 TVL 550 TVL
Total Pixels NTSC : 537(H) x 505(V) NTSC : 811(H) x 508(V)
PAL : 537(H) x 597(V) PAL : 795(H) x 596(V)
Effective Pixels NTSC : 510(H) x 482(V) NTSC : 768(H) x 494(V)
PAL : 500(H) x 582(V) PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 0 Lux ( IR LED On)
Sync. System Internal
Gamma r = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Fixed IR Board Lens
Electronic Shutter NTSC : 1/60~1/100,000 sec  /  PAL : 1/50~1/100,000 sec
Day & Night Digital Day & Night
IR LED 850nm, 20ea, up to 20m 850nm, 30ea, up to 30m
IR LED Operation On (1 Lux) / Off (3 Lux)
IP Rating IP67 (Water Proof)
Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 420mA DC12V (±10%), Max. 400mA
Dimensions (mm) Φ58.5 X 100.5
Weight Approx. 362 g
Options Cable Concealed Bracket
Optional Colors Black / Dark silver



 LENS OPTIONS



Type

IR Board Lens
Focal Length 3.7 4.0 6.0
Aperture F2.0 F2.0 F2.5
Angle of View

95.3Ëš

86.1Ëš

50.6Ëš



 DIMENSIONS



 MOUNTING POSITION
