KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available
KT&C USA

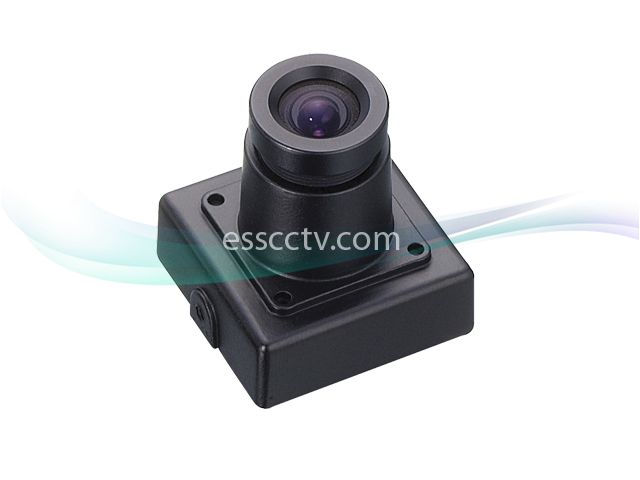

KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available
Images are for illustration purpose and may not show the actual product.
Additional Images:
Additional Image for KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available : KPC-VSN500NH Additional Image for KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available : 3.7mm P1 lens Additional Image for KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available : 3.7mm P3 lens Additional Image for KT&C Color Super Miniature Camera - 550TVL, 0.05Lux, 12V, 25mm x 25mm, DC 5V Available : 4.3mm P4 lens
Model: KPC-VSN500NH
Item #: 306
Manufacturer: KT&C USA
MSRP: $84.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Lenses:
Power Supply:

This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-E23NUB
  • 1/3" Sony Super HAD CCD â…¡
  • High-Resolution of 550 TVL
  • Fixed Board , Pinhole, Varifocal lens
  • Super Low Illumination of 0.05Lux/Faceplate
  • Compact size of 25mm(W)×25mm(H)
  • Attractive design with non-reflective coating
  • Extreme clear cutting edge picture
  • Options : Low Voltage DC5V (KPC-VSN505), Mirror Mode

 SPECIFICATION



Model Name
KPC-VSN500
Image Device 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TVL
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 45dB (AGC Off)
Min. Illumination 0.05 Lux  / Faceplate
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens Fixed Board Lens / Pinhole Lens
Electronic Shutter NTSC : 1/60 ~ 1/100,000 sec  /  PAL : 1/50 ~ 1/100,000 sec
Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 60mA
Dimensions (mm) 25 (W) X 25 (H) X 22(D)
Weight Approx. 72g



 LENS OPTIONS



Type

Board Lens

Pinhole Lens

C/CS Mount

P1

P3

P4

Focal Length 2.45 2.97 3.6 4.3 6 8 12 16 3.7 3.7 4.3 -
Aperture F2.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0 -
Angle of View

150Ëš

130Ëš

92Ëš

78Ëš

53Ëš

40Ëš

28Ëš

19Ëš

90Ëš

90Ëš

78Ëš

-



 DIMENSIONS

 MOUNTING POSITION
