> Item #23

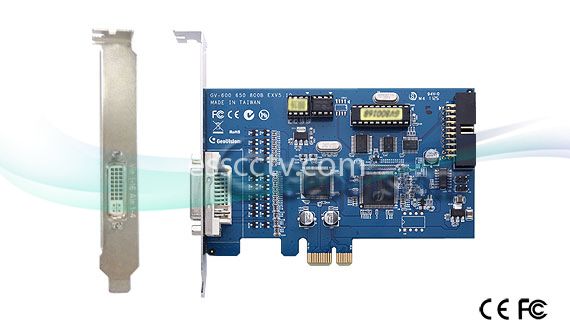

GENUINE GEOVISION 8ch DVR card 30 FPS, v8.5 software, 64 bit Windows 7 support

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GENUINE GEOVISION 8ch DVR card 30 FPS, v8.5 software, 64 bit Windows 7 support: GV-600B-8

Additional Image for GENUINE GEOVISION 8ch DVR card 30 FPS, v8.5 software, 64 bit Windows 7 support: Retail Box

Additional Image for GENUINE GEOVISION 8ch DVR card 30 FPS, v8.5 software, 64 bit Windows 7 support: Software DVD

Additional Image for GENUINE GEOVISION 8ch DVR card 30 FPS, v8.5 software, 64 bit Windows 7 support: DVI video cable

Model: GV-600B-8
Item #: 23
Manufacturer: GeoVision

MSRP: ~~$280.00~~
Our Price:

$179.00

(You save: $101.00)

Video Inputs: 8

Audio Inputs: 4

Display/Record Frame Rate: 30/30 FPS

Adjustable Camera Frame Rate: Supported For Each Camera

Video Input Type: DVI

Card Interface: PCI-Express

Video Format: NTSC, PAL

Video Compression: Geo MPEG4, Geo H264

Recording Mode: Continuous / Motion / Schedule

Internet: Multiple simultaneous logins supported.

Instruction Manual: Included

Software Version: GeoVision Software Version 8.5 or latest version upon release

Packaging: New in Retail Box

3 Year Manufacturer Warranty

			GV-600B	GV-600B x 2
Interface			PCI-E (x1)	PCI-E (x1) x 2
Input Type			DVI
Video Input			4, 8, 16 Cams	8, 12, 16, 20, 24, 32 Cams
Audio Input			4 Channels	8 Channels
Recording Rate	CIF	NTSC	4-port: 30 fps 16-port: 30 fps	4+4 port: 60 fps 16+16 port: 60 fps
		PAL	4-port: 25 fps 16-port: 25 fps	4+4 port: 50 fps 16+16 port: 50 fps
	D1	NTSC	4-port: 30 fps 16-port: 15 fps	4+4 port: 60 fps 16+16 port: 30 fps
		PAL	4-port: 25 fps 16-port: 12.5 fps	4+4 port: 50 fps 16+16 port: 25 fps
Display Rate	CIF	NTSC	4-port: 30 fps 16-port: 30 fps	4+4 port: 60 fps 16+16 port: 60 fps
		PAL	4-port: 25 fps 16-port: 25 fps	4+4 port: 50 fps 16+16 port: 50 fps
	D1	NTSC	4-port: 30 fps 16-port: 15 fps	4+4 port: 60 fps 16+16 port: 30 fps
		PAL	4-port: 25 fps 16-port: 12.5 fps	4+4 port: 50 fps 16+16 port: 25 fps
Video Resolution		NTSC	704 x 480, 704 x 480 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 240, 320 x 240
		PAL	704 x 576, 704 x 576 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 288, 320 x 240
Video Compression Format			Geo MPEG4, Geo H264
Audio Compression Format			AAC (16kHz / 16 bit)
GV-NET/IO Card Support			Yes
Dimensions (W x H)		PCI-E	120 x 82 mm / 4.7 x 3.2 in
Installation Guide			GV-600B

Note:
1. GV-600B is currently not compatible with VIA series and ATI series chipset motherboards.
2. 8-port has the same recording rate and display rate as 16-port.
3. Specifications are subject to change without notice.

Minimum System Requirements For One Card
OS Supported	32-bit	Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit	Windows 7 / Windows Server 2008 R2
CPU		Pentium 4, 2.0 GHz
RAM		Windows XP: 2 x 512 MB Dual Channels Windows Vista / 7 / Server 2008 : 2 x 1 GB Dual Channels
HDD		80 GB
Graphic Card		AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectX		9.0c

Minimum System Requirements For Two Cards
OS Supported	32-bit	Windows XP / Windows Vista / Windows 7 / Windows Server 2008
	64-bit	Windows 7 / Windows Server 2008 R2
CPU		Pentium 4, 2.6 GHz with Hyper Threading
RAM		2 x 1 GB Dual Channels
HDD		160 GB
Graphic Card		AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color
DirectX		9.0c
