* SOLD OUT * XPB-204 HD-SDI 1080p Brick Camera w/ Dual Power Input

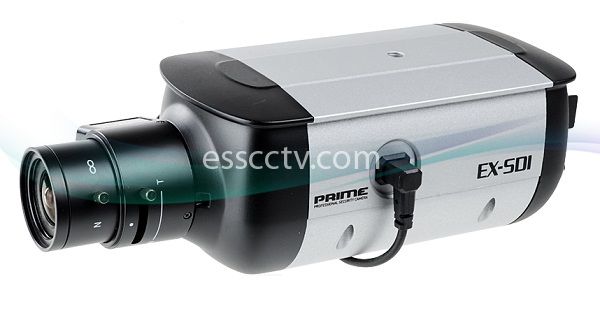

Images are for illustration purpose and may not show the actual product.
Model:
XPB-204
Item #: 2041
Manufacturer: Eyemax
MSRP:
$150.00
Our Price:
$105.00
(You save: $45.00)
- 1/3" SONY CMOS sensor
- HD-SDI (1080p, 720p) / High Resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface) / 1 lux at F1.2 / 0.1 lux (B/W)
- DNR (Digital Noise Reduction)
- Motion / Privacy / Easy Installation
| Resolution |
HD-SDI(1080P, 720P) / 1000 TV Line Over |
| Sensor |
1/3“ SONY CMOS |
| Total Pixels |
2010(H) X 1108(V) = 2.2M Pixel |
| Effective Pixels |
1944(H) X 1092(V) = 2.1M Pixel |
| Scanning System |
Progressive |
| S/N (Y Signal) |
More than 52 dB(AGC Off) |
| Video Output |
SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75Ω) |
| Min. Illumination |
1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance |
ATW / PUSH / MANUAL |
| Electronic Shutter Speed |
AUTO / MANUAL(1/30sec ~ 1/30,000sec) |
| Brightness |
Adjustable (0~20 Step) |
| Sens-up |
OFF / ×2 / ×3 / ×4 |
| DNR |
OFF / LOW / MIDDLE / HI |
| WDR / BLC |
OFF / Single scan WDR / BLC |
| HLM |
OFF / SET |
| ACE |
OFF / ON |
| Day & Night |
AUTO (Day <-> Night TIME Change), COLOR, B/W |
| Privacy |
OFF / ON (28 Zone) |
| Motion Detection |
OFF / ON (8 Zone) |
| D. Zoom |
0 ~ ×112 |
| FLIP |
OFF / ON |
| FREEZE |
OFF / ON |
| Language |
ENGLISH |
| Sharpness |
ADJUSTABLE (0~10 STEP) |
| Mirror |
ON / OFF |
| COMM. |
RS-485(PELCO-D) |
| Operating Temperature / Humidity |
-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temperature / Humidity |
-20°C~+60°C (-4°F ~ +140°F) / 20% ~ 90% RH |
| Power |
DC 12V |
| HD-SDI |
300 ~ 450ft (100 ~ 150m) |
| Transmission range |
Max transmission range is depends on the cable manufacturer and the installation environment. |
| Dimensions |
72(W) × 63(H) × 150mm(D) / 2.83465 × 2.48031(H) × 5.90551"(D) |
