> Item #2020

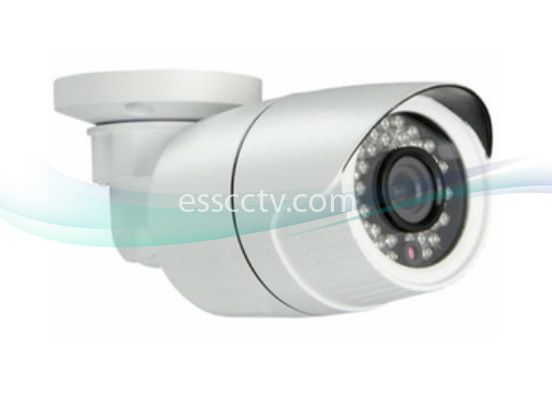

NIR-C3022F-W 3MP Outdoor Infrared Bullet IP Camera with 3.6mm Fixed Lens & 28 IR LED

Images are for illustration purpose and may not show the actual product.

Model: NIR-C3022F-W
Item #: 2020

MSRP: ~~$200.00~~
Our Price:

$153.00

(You save: $47.00)

CAMERA
Image Sensor	1 / 3" CMOS
Image Size	2048 x 1536
Electronic Shutter	1 / 25s ~ 1 / 100,000s
Min. Illumination	0 Lux ( IR LED ON )
Lens	3.6 mm Fixed Lens
Lens Mount	M12
Video Compression	H.264 / MJPEG
Resolution	3MP ( 2048 × 1536 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 x 240
Multi-Stream	3MP ( 1 ~ 30fps ) / 1920 x 1080 ( 1 ~ 30fps ) 1280 x 720 ( 1 ~ 10fps ) / D1 ( 1 ~ 30fps ) / CIF ( 1 ~ 30fps ), CIF ( 1 ~ 30fps ) / 480 x 240 ( 1 ~ 30fps )
Bit Rate	64 Kbps ~ 8 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	ROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
FUNCTIONS
Remote Monitoring	IE browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, Protocol SMTP, FTP
Storage	Network remote storage
Smart Alarm	Motion Alarm
Day & Night	ICR
PoE	Yes
IR Distance	10 ~ 20m
Water-proof	IP66
INTERFACE
Network	RJ45
Audio	One-way audio (MIC IN × 1)
OTHERS
Power Supply	DC 12V / PoE
Power Consumption	< 4W
IR Consumption ON	< 6W
Operating Environment	-40°C ~ 50°C, 10% ~ 90% humidity
Dimensions	ø64mm × 183mm (ø2.5 in x 7.2 in)
