| Brand | Geovision |

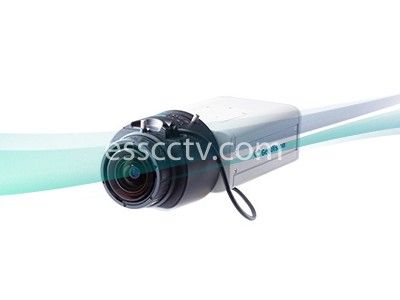

| Model | GV-BX12201 |
| Image Sensor | 1/1.7" progressive scan CMOS |
| Maximum Aperture | F/1.6 |
| Minimum Illumination | 0.1 Lux (Color) / 0.05 Lux (B&W) / 0 Lux (IR On) |
| Lens | 4.1 ~ 9 mm |
| Compression | H.264, MJPEG |
| Max Image Resolution | 4000 x 3000 |
| Audio | Two-way audio support; Built-in microphone |
| TVâ€Out | BNC connector (640 x 480 resolution) |
| Network | 10/100 Mbps Ethernet, RJ-45 ONVIF support |
| Wifi | Mini USB slot for WiFi Adapter |
| Protocols | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
| WDR | Yes |
| 3GPP | Yes |
| Auto Iris Support | Yes (with varifocal lens) |
| Day & Night | Yes |
| Dual Streaming | Dual streams from H.264 or MJPEG |
| Local storage | Micro SD card slot (SDHC/SDXC/UHSâ€I, Class 10) |
| Operating Temperature | 32°F ~ 122°F |
| Power | 12V DC / 24V AC / POE |
| Power Consumption | Max. 6 W |
| Dimensions | 4.72" x 2.96" x 2.13" (Without Lens) |
| Single Unit Weight | 1.2lb |
| Package | Retail |
| Warranty | 2 Year warranty |
