> Item #20

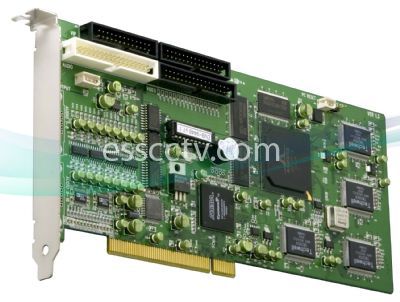

Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android: DVB-9448

Additional Image for Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android: screen shot - status

Additional Image for Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android: screen shot - search

Additional Image for Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android: screen shot - control

Additional Image for Eyemax GENUINE DVR card: MPEG-4 480 FPS Real-Time Display/Record, 16 Ch Video/Audio, Support Iphone and Android: i Smart Viewer screen shot

Model: DVB-9448
Item #: 20
Manufacturer: Eyemax

MSRP: ~~$850.00~~
Our Price:

$645.00

(You save: $205.00)

The item has been discontinued.
Please contact us for possible remaining stock.

16 channel video input

16 channel audio input

480 fps display frame rate (Realtime)

480 fps record frame rate (Realtime recording at 320×240 Resolution)

MPEG4 high compression CODEC

D1 / Half-D1 / CIF Resolution

Pentaplex operation (Live / Recording / Playback / Network / Backup)

Remote client viewing on either client software or web browser

Multi DVR viewer (MDVR) up to 64 channels on a client

TV spot out (switching, RCA)

Compatible with Smart phones: i-Smart Viewer for iPhone and Androids

Client software is compatible with Microsoft® Windows Vista and Windows 7, 32 bits

DVB 9448 is the high-end, top of line Eyemax DVR card. It displays up to 16 video channels with a crystal clear picture and recording in realtime. The high compression MPEG4 CODEC provides more recording time with the same size hard disk drive than the previous MJPEG CODEC. The built-in video motion detector logic helps the DVR system from storing unnecessary video. By connecting the DVR to the Internet, you are able to view live or archived videos from a remote location. Or you can connect to multiple DVR's from different location and view them all at the same time.

Camera Input	16 Channel
Audio Input	16 Channel
Loop out	N/A
Spot Monitor Output	1 Port (RCA)
Spot Out Type	Switching
Alarm Output	8
Sensor Input	16
Total Display	480 fps
Total Recording	480 fps
CODEC	MPEG4
Resolution	640×480/640×240/320×240 Resolution
Screen Set	1 / 4 / 7 / 8 / 13 / 16 / Sequential
Triplex Recording	Yes
Network	LAN, Cable, DSL, MODEM (optional)
Remote Viewing	via Client software or Web Browser (Active-X must be enabled)
Backup	Data Transfer / JPEG or BMP ImageRemote site backup / Schedule BackupAVI standard movie clip (Windows Media Player compatible)
Recording Mode	R : Recording continuously M : Recording only with motion detection S : Recording only with sensor detection H : Recording continuously but higher frame rate recording at motion triggered
PTZ Control	via RS232 Port (RS485 to RS232 Converter required)
Software Included	Server / Client / Backup Viewer / Watermark Viewer / Multi-client Viewer
