| Brand | Geovision |

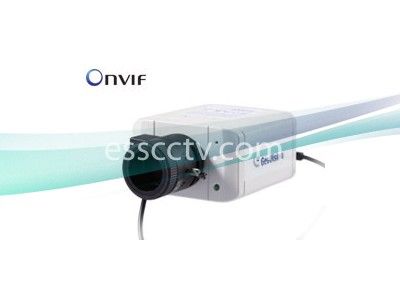

| Model | GV-BX3400-3V |
| Image Sensor | 1/3.2" progressive scan CMOS |
| Maximum Aperture | F/1.4 |
| Minimum Illumination | 0.08 Lux (Color) 0.05 Lux (B&W) 0 Lux (IR On) |
| Lens | 3 ~ 10.5 mm / f1.4 |
| Compression | H.264, MJPEG |
| Max Image Resolution | 2048 (H) x 1536 (V) |
| Audio | Two-way audio support |
| TVâ€Out | BNC connector (640 x 480 resolution) |
| Network | 10/100 Mbps Ethernet, RJ-45 ONVIF support |
| Wifi | Mini USB slot for WiFi Adapter |
| Protocols | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| WDR | WDR Pro |
| 3GPP | Yes |
| P-Iris | Yes |
| Auto Iris Support | Yes (with varifocal lens) |
| Day & Night | Yes (with removable IR-cut filter) |
| Dual Streaming | Dual streams from H.264 or MJPEG |
| Local storage | Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) |
| Operating Temperature | 0°C ~ 50°C / 32°F ~ 122°F |
| Power | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 15.4 W |
| Dimensions | 2.97" x 2.95" x 2.13" |
| Single Unit Weight | 0.66 lb |
| Package | Retail |
| Warranty | 3 Year |
