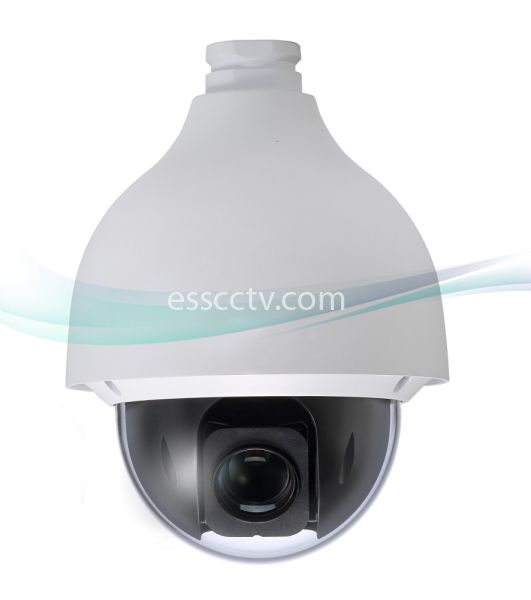

Model

DH-SD50220I-HC

Camera

Image Sensor

1/2.8” Exmor CMOS

Effective Pixels

1920(H) x 1080(V)

Horizontal Resolution

≥1000TVL

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4;

S/N Ratio

More than 50dB

Resolution

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC HDCVI high definition video output/ CVBS standard

definition video output (Can switch)

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

2D/3D

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

4.7mm~94mm (20x Optical zoom)

Max Aperture

F1.4~ F2.6

Focus Control

Auto / Manual

Angle of View

H: 54.1° ~ 3.2°

Close Focus Distance

100mm ~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s

Preset Speed

Pan: 500° /s; Tilt: 500° /s

Preset

300(DH-SD), 255(Pelco-P/D)

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the

specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Audio

Interface

1 channel In

Auxiliary Interface

RS485

1

Alarm

2/1 channel In/Out

General

Power Supply

AC24V/ 1.5A

Power Consumption

10W, 19W (Heater on)

10W

Working Environment

-40ºC ~ 70ºC / Less than 90% RH

-20ºC ~ 60ºC / Less than 90% RH

Ingress Protection

IP67, IK10

IK10

Dimensions

Φ186.0(mm) x 253(mm)

Φ198(mm) x 177(mm)

Weight

2.5Kg

2.2Kg
