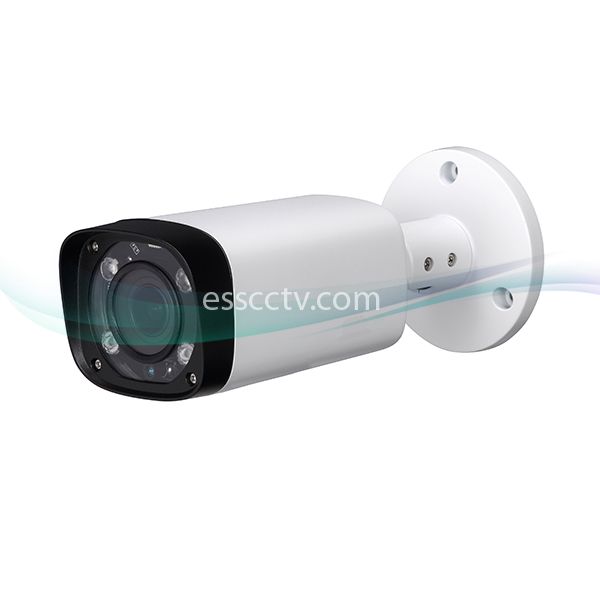

| Model | HCC5121R-IRL-Z |
| Camera | |
| Image Sensor | 1/2.7” 2.1Megapixel CMOS |
| Effective Pixels | 1928(H)×1088(V) |
| Electronic Shutter | 1/3s~1/300,000s |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P |
| Synchronization | Internal |
| Mini. Illumination | 0.03Lux/F1.4, 0Lux IR on |
| Video Output |
1-channel BNC HDCVI high definition video output & CVBS standard definition video output |
| Camera Features | |
| Max. IR LEDs Length | 200ft, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | 120dB True WDR |
| Noise Reduction | 2D/3D |
| OSD Menu | Multi-language |
| Lens | |
| Focal Length | 2.7~12mm |
| Angle of View | H: 99º~37º |
| Lens Type | Motorized / Fixed Iris |
| Mount Type | Φ14 |
| General | |
| Power Supply | DC12V±25% |
| Power Consumption | Max 8.2W |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Ingress Protection | IP67 |
| Dimensions(W×D×H) | 213mm×80mm×72mm |
| Weight | 0.55kg |
| Material | Metal |
