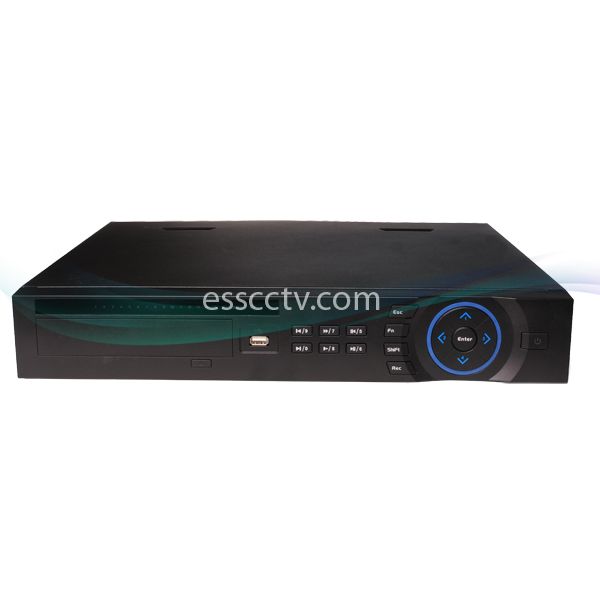

Model

DH-HCVR5404L

DH-HCVR5408L

DH-HCVR5416L

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel, BNC

8 channel, BNC

16 channel, BNC

Standard

NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

Audio

Input

4 channel, BNC

Output

1 channel, BNC

Two-way Talk

Reuse audio input/output channel 1

Display

Interface

1 HDMI, 1 VGA, 1BNC

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

1/4/8/9

1/4/8/9/16

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio

Compression

H.264 / G.711

Resolution

720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576

/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)

Record

Rate

Main

Stream:

720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra

Stream

CIF/QCIF(1~25/30fps)

Bit Rate

48~6144Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection&Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

4 channel

8 channel

16 channel

Alarm Output

6 channel

Playback & Backup

Sync Playback

1/4

1/4/8

1/4/8/16

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network
