Model

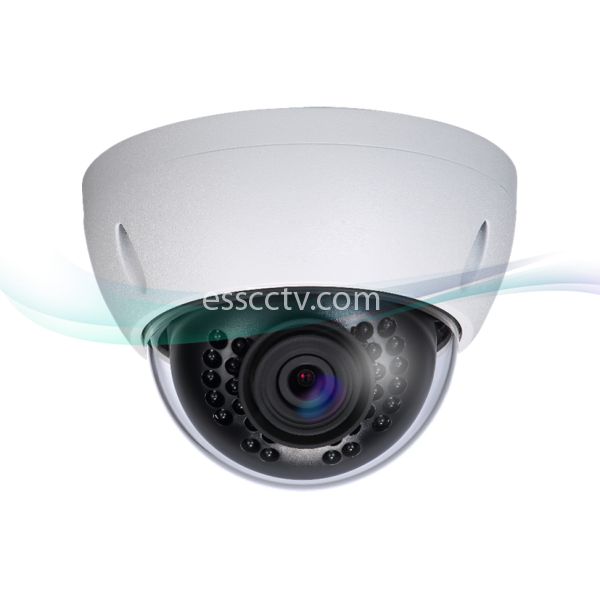

HNC3220E-IRW

Camera

Image Sensor

1/3” 3Megapixel CMOS

Effective Pixels

2048 (H)x1536(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/10000s

Min. Illumination

0. 1Lux/F1.8(Color),0Lux/F1.8 (IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

30m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

2D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm (2.8mm, 6mm optional)

Max Aperture

F1.8(F2.0,F1.6)

Focus Control

Manual

Angle of View

H:71.9°(90°/45°)

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/ MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 16K ~ 8192Kbps

Audio

Compression

N/A

Interface

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

Wi-Fi(802.11b/g/n)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF,CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V

Power Consumption

< 4.5W

Working Environment

-30°C~+50°C, Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK10

Dimensions

Φ110mm×81mm

Weight

0.39kg
