> Item #1868

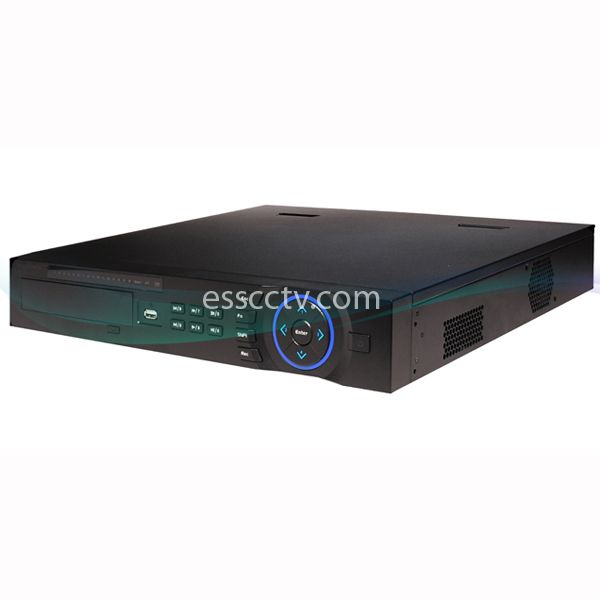

SavvyTech NVR304L-16/16P 16CH 1.5U NVR w/16POE 200Mbps, HDMI/VGA/BNC, 16ch Alarm, 4SATA

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: NVR304L-16/16P
Item #: 1868
Manufacturer: SavvyTech

MSRP: ~~$800.00~~
Our Price:

$558.60

(You save: $241.40)

Up to 16/32 channel IP camera input

H.264/MJPEG dual codec decoding

Max 200Mbps incoming bandwidth

Up to 5Mp resolution preview&playback

HDMI/VGA/TV simultaneous video output

16 channel synchronous realtime playback, GRID interface

Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

ONVIF Version 2.3 conformance

3D intelligent positioning with Dahua PTZ camera

Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 2 USB(1 USB3.0)

Support IPC UPnP, 16PoE ports

Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Model	NVR304L-16/16P	NVR304L-32/16P
System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video& Audio
IP Camera Input	16 channel	32 channel
Two-way Talk	1channel Input, 1channel Output, RCA
Display
Interface	1 HDMI,1 VGA,1 TV
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9/16	1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264/MJPEG
Resolution	5Mpï¼ˆ2560×1920ï¼‰/3Mpï¼ˆ2048×1536ï¼‰/1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)&etc.
Record Rate	200Mbps
Bit Rate	48~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	16 channel
Relay Output	4 channel
Playback & Backup
Sync Playback	1/4/9/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet	1 RJ-45 port (10/100/1000Mbps)
PoE	16 ports (IEEE802.3at/af)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android, Windows Phone

NVR304L-32/16P

Storage
Internal HDD	4 SATA ports, up to 16TB
External HDD	1 eSATA port
Auxiliary Interface
USB	2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232	1 port, For PC communication& Keyboard
RS485	1 port, For PTZ control
General
Power Supply	AC 100V~240V,50/60HZ
Power Consumption	NVR: 40W (without HDD)
Power Consumption	PoE: Max 25.5W for single port
Working Environment	-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension (W×D×H)	1.5U, 440mm×410mm×70mm
Weight	6KG(without HDD)
