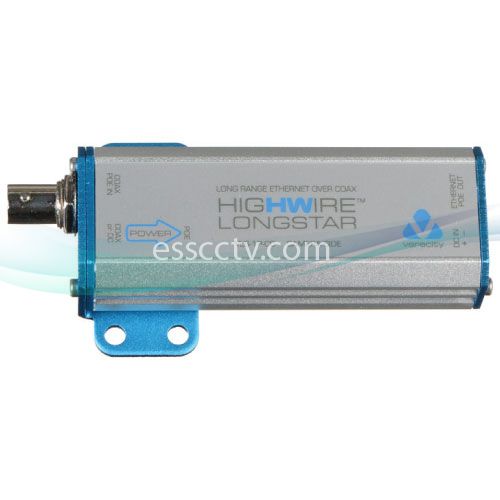

Long range Ethernet and POE over new or legacy coaxial cable
Unrestricted 100Base-T and POE over 1400m (4,600ft) on RG11
Ruggedised for high-performance over extreme temperature range
Fully automatic, simple to install and maintenance-free
BS EN 50121-4 compliant (rail and metro)
Up to 4.2km (2.5 miles) data-only link at 10Base-T without POE
| POWER (Non-POE models) | ||
| Unit power | 1.0 watts | |
| DC Power input | Detachable screw terminal for class II isolated external supply | |
| 8-57 volts DC or 20-28 volts AC, max 100mA | ||
| POWER (POE models | ||
| Unit power | 1.0 watts | |
| POE in (base) | IEEE 802.3af (POE) or IEEE 802.3at (POE Plus), 2-event, power class 4 | |
| POE out (camera) | IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) | |
| DC power in (base) | Detachable screw terminal for optional Veracity 57V supply | |
| LONGSPAN INTERFACE | ||
| Connector | BNC | |
| Cable | 75 Ohm Coaxial, RG59, RG6 or RG11 or equivalent | |
| Note: also compatible with 50 Ohm cable types | ||
| Rate | 200Mbit/s up to 690 metres [2263ft] (RG59 20AWG) | |
| 200Mbit/s up to 1400 metres [4593ft] (RG11) | ||
| 20Mbit/s up to 4.2km [2.6miles] (RG11), auto-adapts | ||
| ETHERNET INTERFACE | ||
| Connector type | RJ45 | |
| Cable type | Patch or crossover, auto detected | |
| Rate | 100Base-TX or 10Base-T, full-duplex with auto-negotiation | |
| PHYSICAL/ENVIRONMENTAL | ||
| Dimensions | L 115mm, W 55mm H 27mm, inc removable bracket | |
| Weight | 112g [3.95oz] | |
| Operating temperature | -40°C to 70°C [-40°F to 158°F] | |
| Relative humidity | 85% non-condensing | |
| Compliance | FCC, CE, RoHS, BS EN 50121-4 (rail + metro) | |
