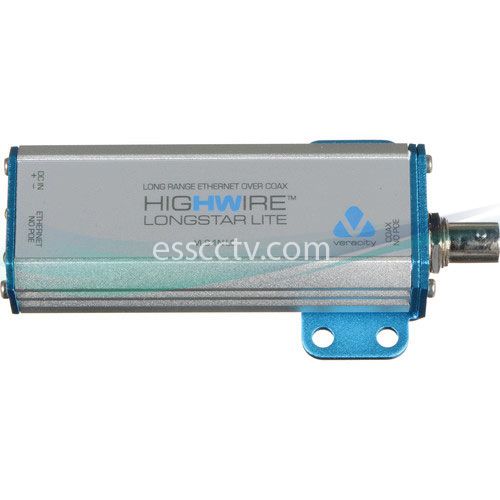

Veracity VLS-1N-LC HIGHWIRE Longstar Lite Long-Range Ethernet over Coax
Images are for illustration purpose and may not show the actual product.
Model:
VLS-1N-LC
Item #: 1824
Manufacturer: Veracity
MSRP:
$480.00
Our Price:
$357.00
(You save: $123.00)
- Long range point-to-point Ethernet over regular Cat 5 or Cat 6 cable
- Unrestricted 100Base-T with POE at over 800 metres
- POE version delivers full POE Plus power at 600 metres
- Ruggedised for high performance over extreme temperature range
- Smart power and diagnostic display for reliable installation
- Fully automatic, simple to install and maintenance-free
| POWER (Non-POE models) |
| Unit power |
|
1.0 watts |
| DC Power input |
|
Detachable screw terminal for class II isolated external supply |
| |
|
8-57 volts DC or 20-28 volts AC, max 100mA |
| |
|
|
| POWER (POE models |
|
| POE in (base) |
|
IEEE 802.3af (POE) or IEEE 802.3at (POE Plus), 2-event, power class 4 |
| POE out (camera) |
|
IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) |
| DC power in (base) |
|
Detachable screw terminal for optional Veracity 57V supply |
| |
|
|
| LONGSPAN INTERFACE |
|
| Connector |
|
RJ45 |
| Cable |
|
Cat 6, Cat 5e, Cat 3, other 1/2/4-pair UTP |
| |
|
Patch wiring recommended, other wiring auto-corrected |
| Rate |
|
200Mbit/s up to 600 metres [2,000ft] (CAT 6) |
| |
|
20Mbit/s up to 1000 metres [3300ft] (CAT 6), auto-adapts |
| |
|
|
| ETHERNET INTERFACE |
|
| Connector type |
|
RJ45 |
| Cable type |
|
Patch or crossover, auto detected |
| Rate |
|
100Base-TX or 10Base-T, full-duplex with auto-negotiation |
| |
|
|
| PHYSICAL/ENVIRONMENTAL |
| Dimensions |
|
L 120mm (inc. brackets), W 36mm H 23mm |
| Weight |
|
100g [3.5oz] |
| Operating temperature |
-40°C to 70°C [-40°F to 158°F] |
| Relative humidity |
|
85% non-condensing |
| Compliance |
|
FCC, CE, RoHS, REACH |
