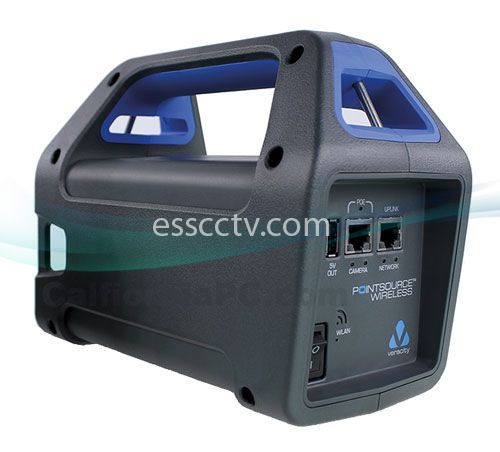

Veracity VAD-PSW POINTSOURCE Wireless Rechargeable Battery Powered POE +

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: VAD-PSW
Item #: 1813
Manufacturer: Veracity

MSRP: ~~$800.00~~
Our Price:

$567.00

(You save: $233.00)

Veracity VAD-PSW POINTSOURCE Wireless Rechargeable Battery Powered POE +

POINTSOURCE Wireless is a portable, battery-powered POE injector providing wireless network access to the IP camera it is powering, where and when you need it. The user simply connects directly to the camera using a standard Ethernet network cable and opens the app on their tablet or smartphone

Allows local viewing of IP camera video wirelessly on smart devices

Enables rapid and precise adjustment of camera alignment, focus and field of view

Removable, rechargeable battery with sufficient power for a day’s installation work

Additional spare batteries available as an option for rapid swap over

Supports all classes of 802.3af and 802.3at POE devices

Includes convenient USB charging point for tablets and smart phones

POWER
POE output		48V DC, IEEE 802.3af/at compliant (POE, POE+, up to 30W
USB charging port		5V, 2.1A, power only, no data
Battery type		Maintenance-free, sealed lead-acid battery, 12V, 3.4Ah
Discharge time		6 hours continuous for a 5 watt camera (typical)
Charger		Three-stage intelligent (14.4V / 1A / 13.8V float)

NETWORK
Wired network interface		“Camera” port: 10BaseT/100BaseT with POE
		“Network” port: 10BaseT/100BaseT data only
IP setting		Automatic or manual configuration of IP address (IPv4)
Wireless network interface		IEEE 802.11b/g/n/ac
		2.4GHz b/g/n (default) – channels 1, 6 or 11
		5GHz a/ac/n – channels 36, 40 or 44
Wireless SSID		User configurable
Wireless security		WPA2-PSK with user configurable password

LED INDICATORS & CONNECTORS
POE status indicator		Red LED shows ON, flash indicates error, off indicates no POE
Battery status indicator		Green four-bar display indicates charge level: 100% - 75% - 50% - 25%
Network port LEDs		Green: Link speed Orange: Network activity
Wireless indicator		Blue LED ON shows wireless link on; flash indicates booting up
Network connectors		2 x RJ45, one with POE
USB connector		1 x USB Type A (power only)
Charging connector		2.1mm jack, centre positive (on battery module – remove to charge)

COMPATIBILITY
Camera discovery		Automatic camera discovery using Bonjour or WS-Discovery (ONVIF)
Supported IP cameras		All IP cameras supporting live-viewing via browser on smart device
		or with RTSP url address
PHYSICAL / ENVIRONMENTAL
Dimensions		L 205mm W 100mm H 150mm ( 5 5/16 x 3 15/16 x 8 1/16 in)
Weight		Unit including battery module: 2.2kg (4.8lb) Battery module: 1.6kg (3.5lb)
Operating temperature		0°C to 50°C (32°F to 122°F)
Storage temperature		- 30°C to 70°C (- 22°F to 158°F)
Battery charging temperature		0°C to 35°C (32°F to 95°F)
Relative humidity		20% to 85%, non-condensing

COMPLIANCE
Main unit		EN 55022 Class B, FCC Part 15 Subpart B Class A + B, ICES-003 Class B,
		VCCI Class B, C-tick S/NZS CISPR 22 Class B, IEC/EN/UL 60950-1, CE, RoHS,
		REACH, WEEE
Battery		UL, IMDG, IATA (non-restricted, OK to transport by air), CE, RoHS, REACH
		Exempt WEEE, ADR, ECHA, DoT

WARRANTY
		Veracity 2-year warranty
