> Item #1809

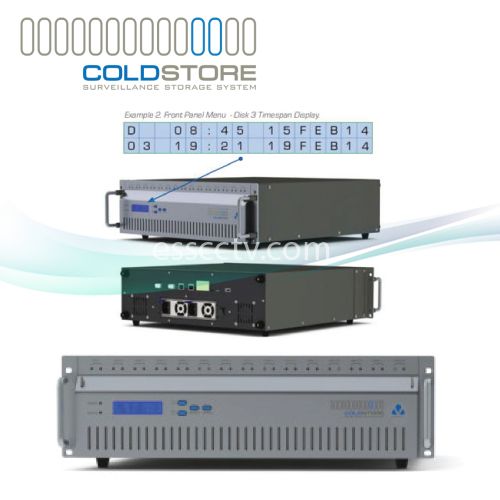

Veracity CSTORE-15-3U-D COLDSTORE CS15-3U-D with L.A.I.D and SFS Technology - 3U - No Drives

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: CSTORE-15-3U-D
Item #: 1809
Manufacturer: Veracity

MSRP: ~~$12,000.00~~
Our Price:

$7,800.00

(You save: $4,200.00)

COLDSTORE’s sequential recording system SFS™ writes to hard disc in a revolutionary way, offers extreme reliability and low total cost of ownership.

Massive 120TB capacity uses only 60 watts in 3U format

Networked storage system incorporating L.A.I.D.™ and S.F.S.™ technology for high disk reliability

No data loss on disk failure and no rebuild required

Uses any SATA drive make, model, effective capacity dependent on model

Simple and straightforward end-user disk management

Instant evidence seizure by disk removal at any time

Individual disks playable on standard PC via USB

DISKPLAY option, custom USB disk docking station

GENERAL
Storage array type		Networked server running L.A.I.D.™ with S.F.S.™ disk filing system
Drive bays		15 x 3.5” (lockable drive trays included)
Interface		Dual Gigabit Ethernet
Data throughput		400Mbit/sec (unlimited scalability with multiple COLDSTORE units)

SYSTEM
O.S		Embedded Linux on solid state memory
System integration		Direct from 3rd party client application (SDK & network protocols available)
Configuration & management		Over LAN via Veracity’s SITESCAPE application.
		By front panel, or over LAN via Veracity’s SITESCAPE application
Compatibility		All COLDSTORE supported VMS systems (see website for current list)
		Directly compatible with the Veracity TRINITY system architecture

CAPACITY
Disc Capacity		SATA disks of any capacity and type are compatible
		(current maximum is 8TB, likely to increase in the future)
Array capacity		Maximum array capacity is currently - 120TB (with 8TB disks)
		Effective capacity - Mirrored Overlapping - 112TB
		Effective capacity - Mirrored Pair - 56TB

ALARMS
Alarm relays		4 software configurable e.g. disk fail, disk inserted, disk extracted, etc
Alarm inputs		4 software configurable e.g. UPS active, power down, etc.

POWER
Power supply rating		Dual hot-swap PSU rated at 320W (See actual power consumption above)
Power consumption		60 watts typical maximum
Time synchronization		Via NTP (recommended

TIME SYNCHRONISATION
Time synchronization		via NTP (recommended)

PHYSICAL/ENVIRONMENTAL
Dimensions		19” rack width, 3U high, 483mm deep (W 440mm x D 483mm x H 131mm)
Weight		17.8kg (39.2lbs)
Operating temperature		5o C to 50o C (41o F to 122o F)
Cooling		Low speed fan - near silent operation
Relative humidity		Up to 85%, non-condensing.
Compliance		CE, FCC, RoHS.
